Steam tugboat "Tim" 1/20 Aero-Naut

Steam tugboat "Tim" 1/20

AeroNaut 303400

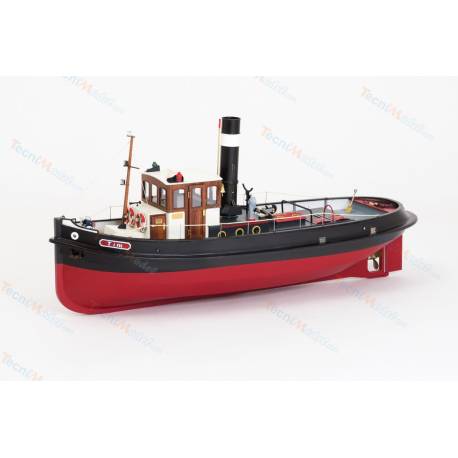

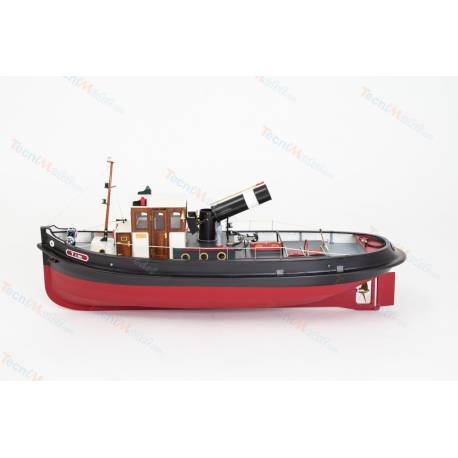

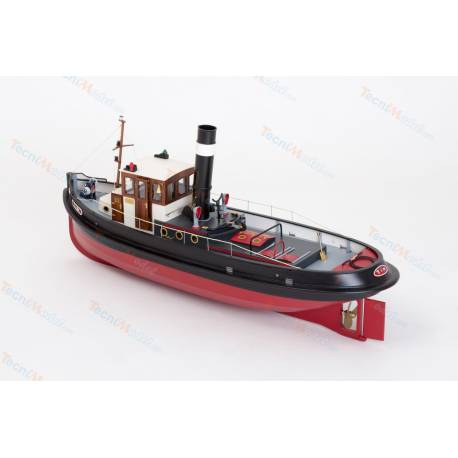

The "Tim" is an early 20th century steam tugboat. The model can be built as a workboat or as a museum boat (with railings). The model is distinguished by a complete set of fittings and high-quality engraved brass parts, enabling the model to be finely detailed.

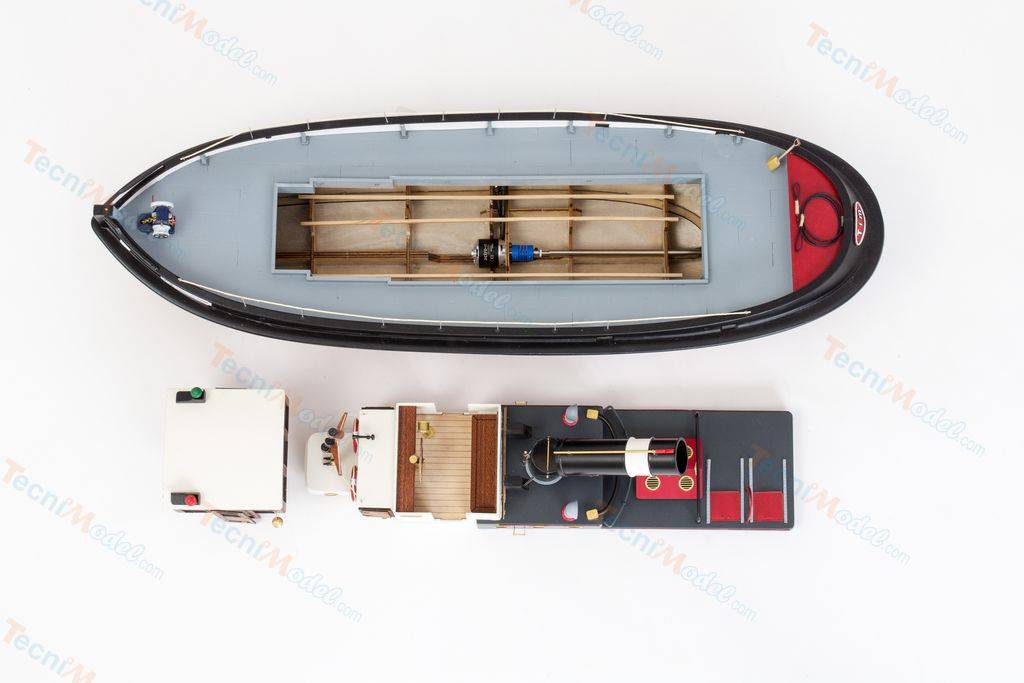

The voluminous hull provides ample space for the entire RC installation. An optional smoke generator can also be fitted. The model can be fitted with lighting. The chimney is foldable, as on the original, and can be folded down using a servo. The kit can be driven by conventional brushless motors, but also by brushless motors.

The "Tim" is made entirely of wood. The kit features state-of-the-art laser technology and high precision fit. The hull is built using the hinged-member technique, and is covered with laser-cut, precision-fitted wood.

Kit contents :

• Numerous laser-cut wooden parts
• Stern tube and ship's propeller shaft
• Ø35mm plastic propeller for basic propulsion
• Set of photoetched parts
• All necessary fittings
• Detailed 3D building instructions in French for download (see "Download" section above)

Features :

• Scale: 1/20
• Width: 230mm
• Length: 710mm
• Height: 325mm
• Hull: wood

Recommended components (not included, see "accessories" below):

Alternative with conventional motorization (brush motor) :

• Motor: 7.2V poison motor Reference PCCAC500906023
• ESC: HobbyWing 1060 Quicrun Référence VAHW30120201
• Shaft coupling: Universal joint for Ø4/Ø3.2mm shafts reference PBRO1596
• Battery: LiPo 7.4V (2S) 4100mAh 50C TAMIYA plug Reference BAAV430414 or Battery: 6 cells NiMh Pack Nimh 7.2v 4000mAh TAMIYA plug Reference BAAP6402F

Brushless motorization alternative :

• Motor: Brushless motor Actro-n 28-4-880 Reference MOAE700304
• Controller: Brushless controller HobbyWing Seaking 30A V3 Reference VAHW30302060
• Shaft coupling: Cardan joint for Ø4/Ø4mm shafts reference PBRO1596
• Battery: LiPo 7.4V (2S) 4100mAh 50C TAMIYA plug Reference BAAV430414 or Battery: 6 cells NiMh Pack Nimh 7.2v 4000mAh TAMIYA plug Reference BAAP6402F
• Controller socket: Gold connectors Tamiya male Reference ACAP14531
