Queen Wooden Yacht 1/10 Kit by Aero-Naut

"Queen" Yacht by Aero-Naut

Ref Aero-Naut: 308000

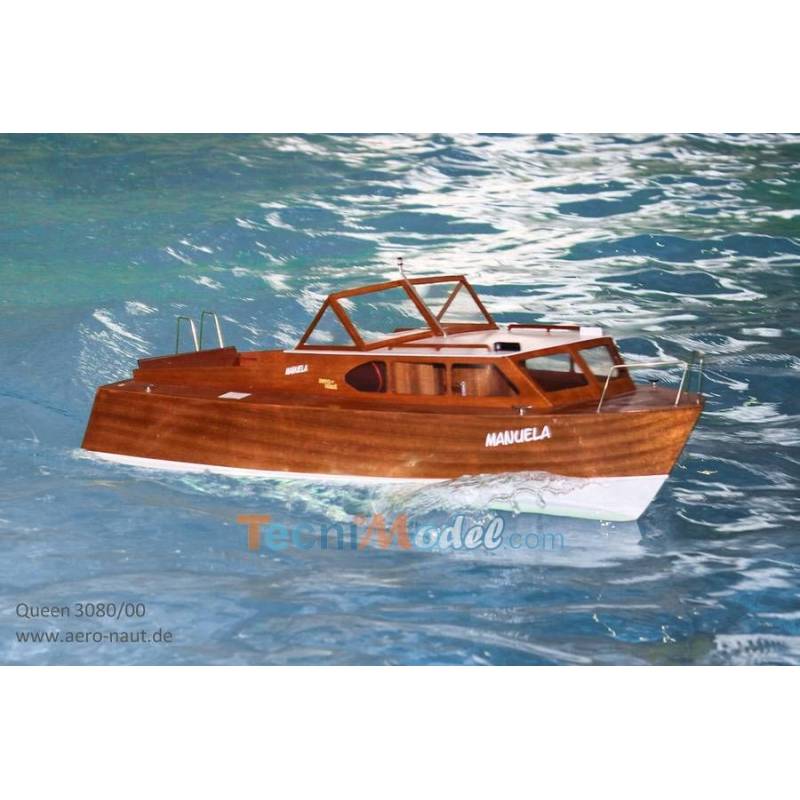

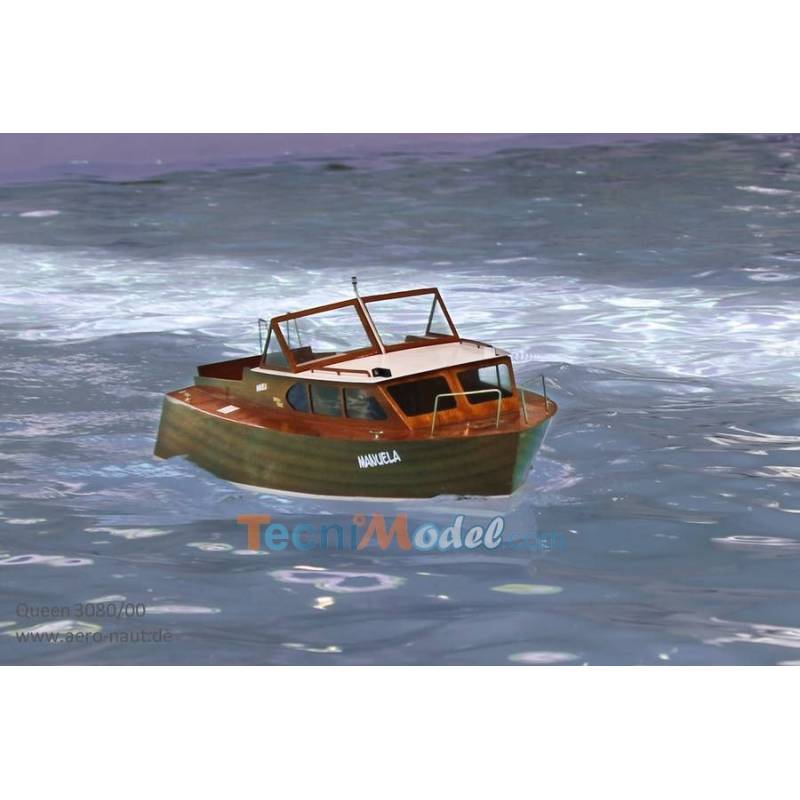

Queen is a semi-model wooden boat from the 60s. During this period, sports boats were always built of mahogany to last, so it is with Queen by Aero-Naut.

Aero-Naut used the proven hull design of two other of their models, the sports boat "Classic" and the "Diva", but with a larger size and a new superstructure. The side panels of the superstructure are permanently glued to the hull to provide effective protection against splashes. Access to the interior is from above the cabin by removing the entire interior of the cabin from one room.

This model is an all-wood model, based on a hardwood structure, which is a necessity for simple and fast construction. All wooden parts are largely prefabricated and are ready to be glued after a blank assembly. The assembly method is basic, identical to that used for the "Classic" and the "Diva" : the hull is assembled on a cut-out depron assembly frame in which the frame are inserted. The installation of the keel and the two front and rear reinforcements completes the assembly of the structure.

The electric motors of the Race/Speed 600 or 700 series are an ideal engine for the model.

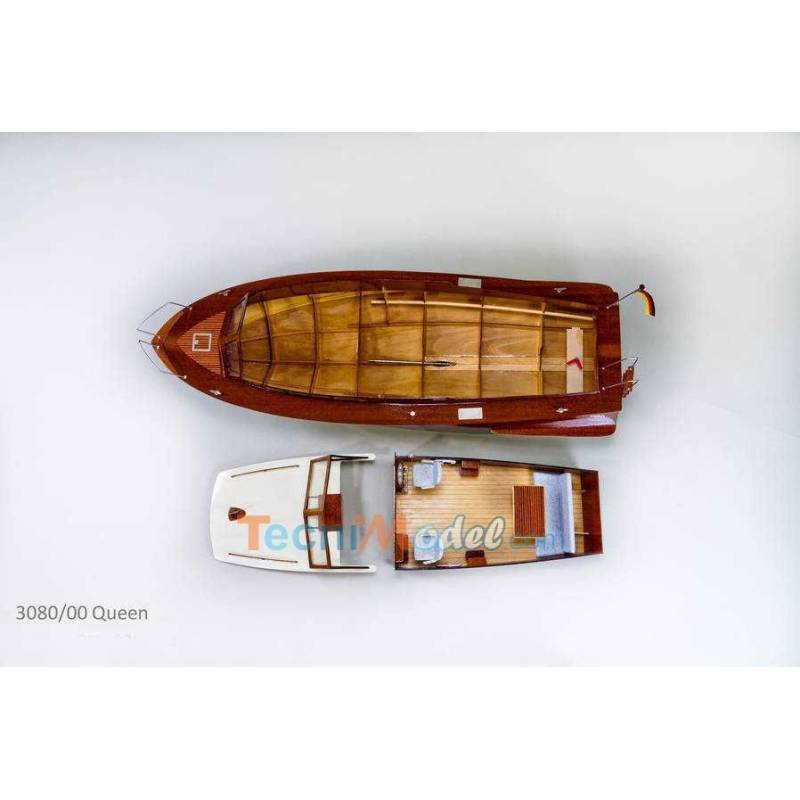

The kit contains all the wooden parts necessary for mounting, as well as the accessories and the propeller shaft.

Notice in French available for download (below).

Characteristics

• Overall length approx. 950 mm
• Width approx. 315 mm
• Scale about 1/10

Motorization Recommendations

Motorization for 7 NiMH or 3S LiPo elements:

Electric motor type Race 650
Inverter type "Aquaspeed 50"
Propeller recommended: Brass propeller 3 blades 40 mm / M4 Raboesch range 146 ref PBRA214613

A Ø3.2/Ø4mm shaft coupling

More powerful motorization for 10 NiMH elements, or 3S or 4S LiPo:

Brushless motor 600 kv
Propeller recommended: Brass propeller 3 blades 50 mm / M4 Raboesch range 146 ref PBRA214617

A Ø4/Ø5mm shaft coupling
