Volvo EC160E RC 1:14 Hydraulic Excavator Kit Yellow
Assembly kit of a Volvo EC160E RC 1:14 Yellow hydraulic excavator. Model delivered painted, to be assembled, without radio control, battery or charger.
Reference : ECDEE111002
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
Volvo EC160E RC 1:14 Hydraulic Excavator Assembly Kit Yellow
Kit model delivered painted, to assemble

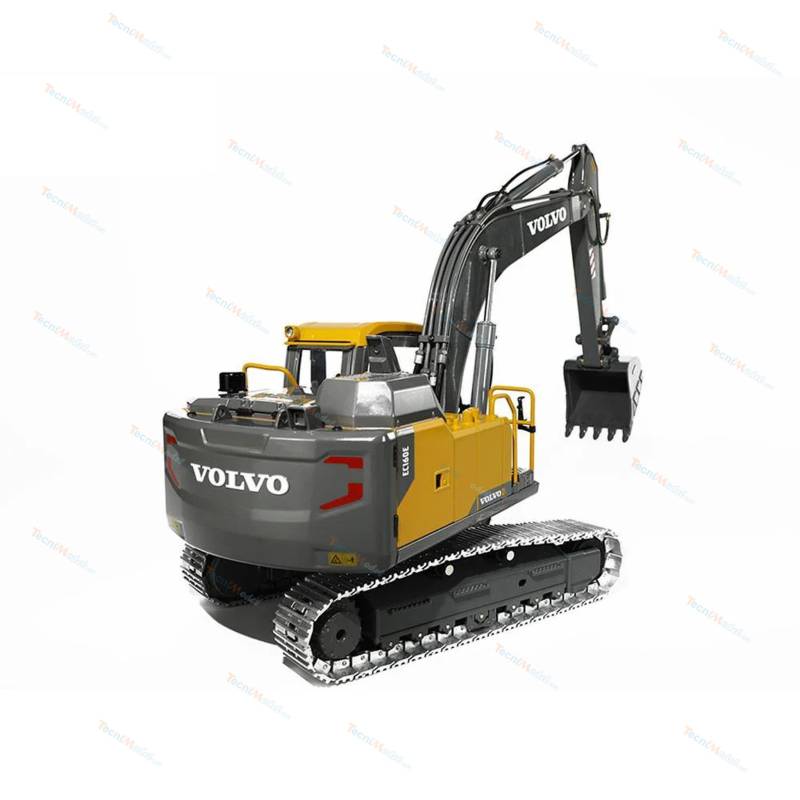

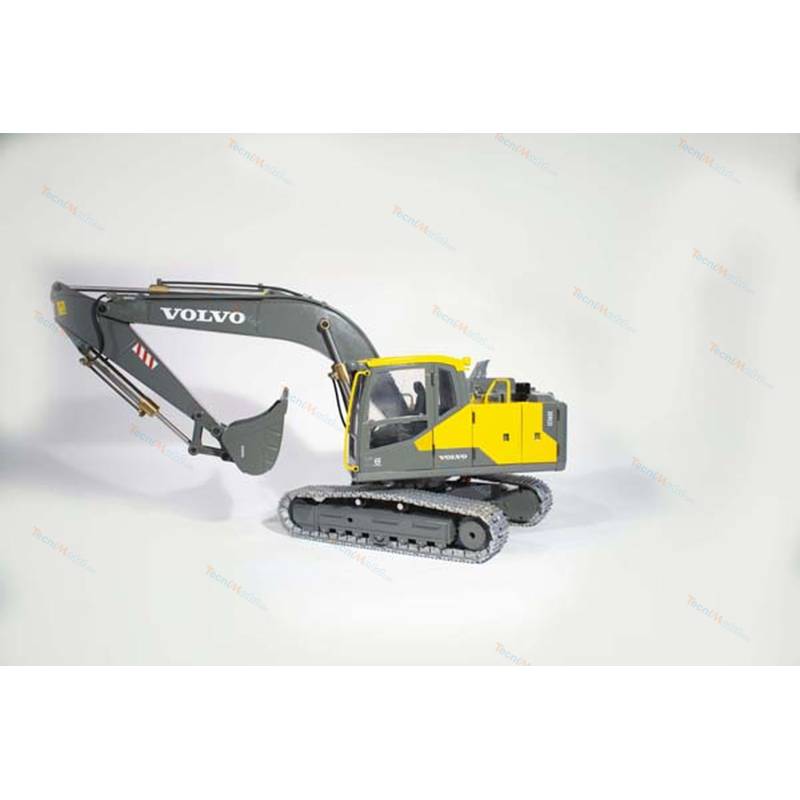

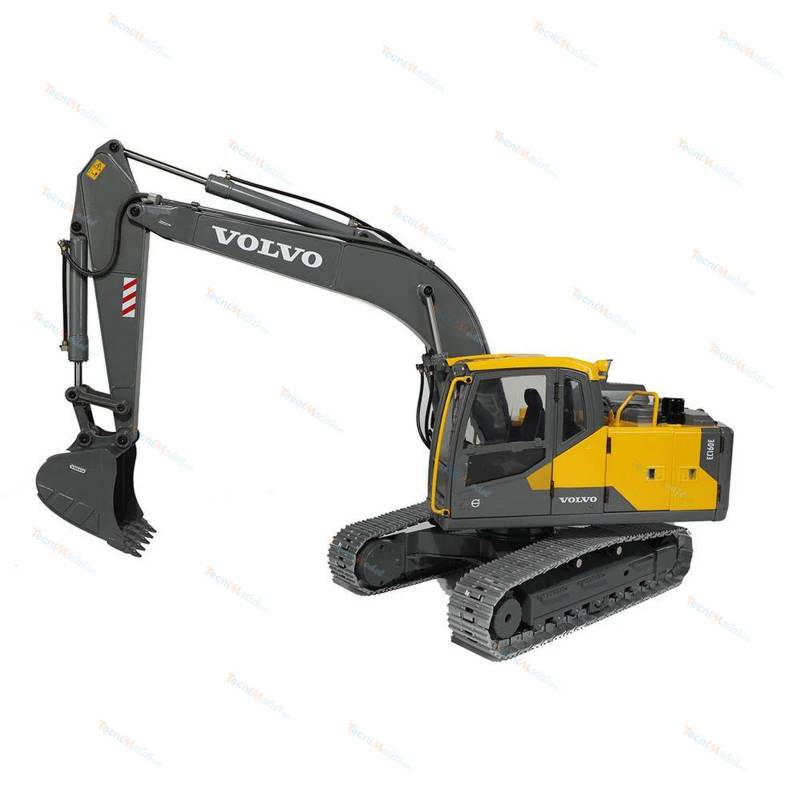

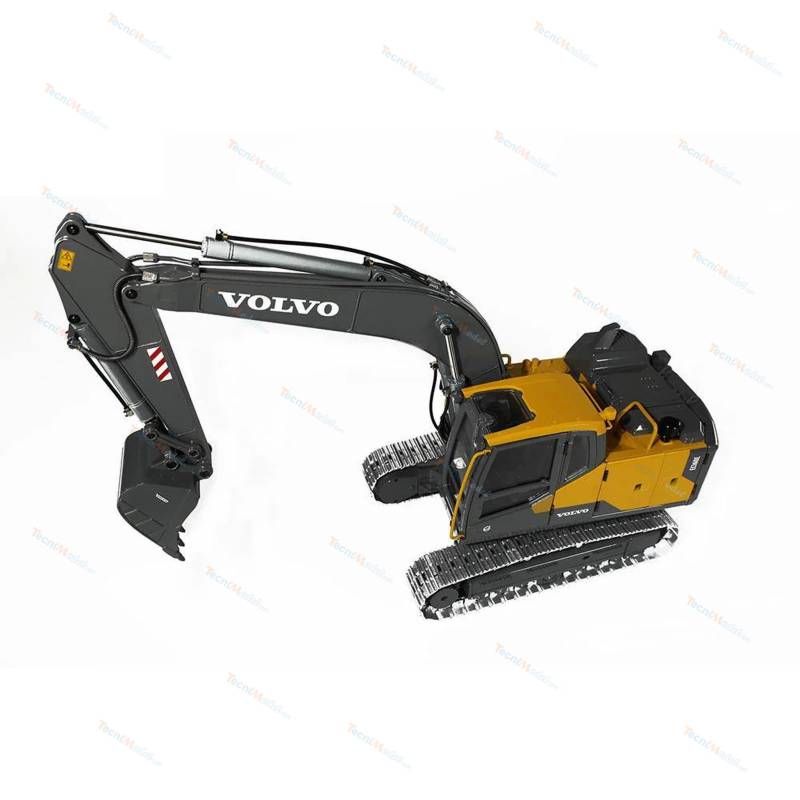

This 1:14 Volvo RC hydraulic excavator is a stunning replica of the real Volvo EC160E excavator in 1:14 scale.
Made largely of metal, this excavator is sturdy and heavy for its size, giving it good stability.
It features 3 spotlights LED lights at the top of the cab that can be made functional, for model evolution in dark weather. Equip the LEDs with resistors for a supply voltage greater than 3 volts.

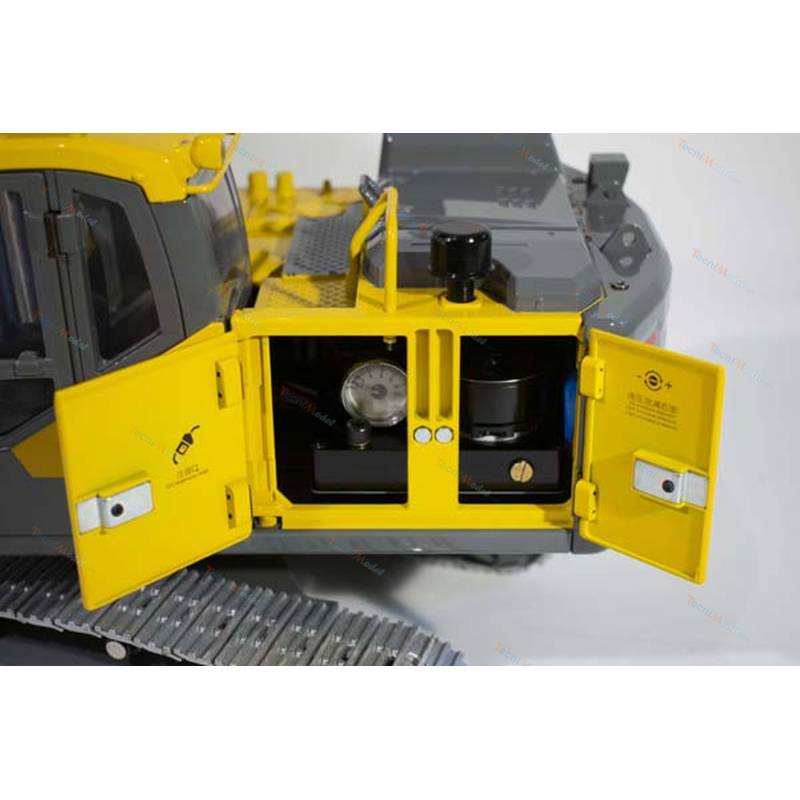

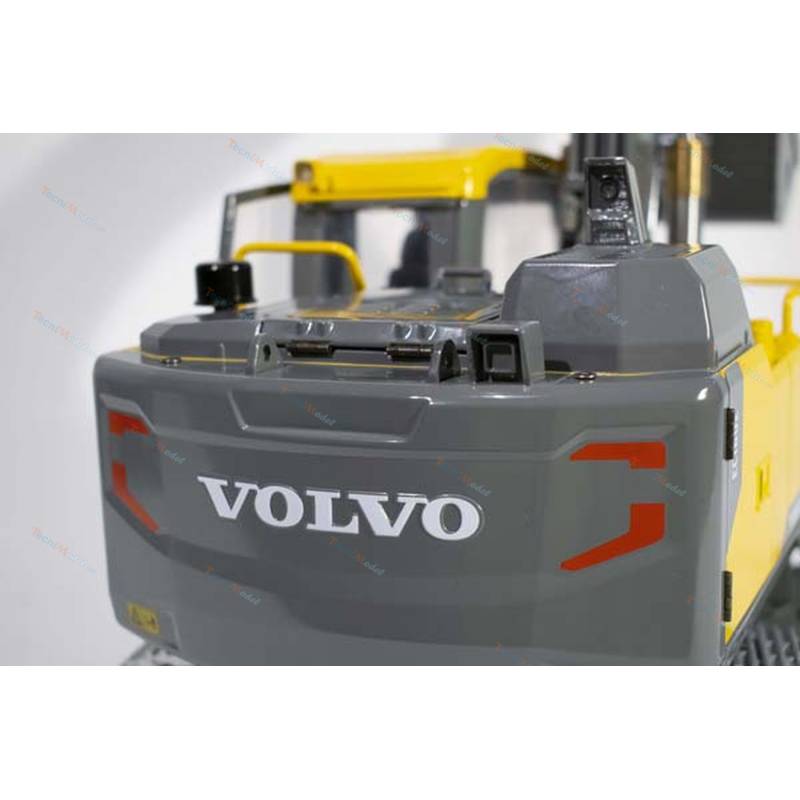

The 3 engine compartment covers can be opened for more realism, but also for power-up and machine adjustments (access to pressure regulator and pressure gauge).
This Volvo EC160E hydraulic excavator is delivered in kit form, already painted, to be assembled, without electronics. Thanks to its electrical design, it can be fitted with a 2S or 3S LiPo battery.
Reproduced under official Volvo CE license
Features :
- Scale: 1/14
- Length
- Arm extended: approx. 80cm
- Arm folded: approx. 60cm
- Width: 196mm
- Height
- Extended arm: 598mm to bucket
- Folded arm: 213mm to cab
- Weight: 10.8kg
- Maximum reach: 648mm from turret axis to bucket tip
- Travel speed: 0.6km/h
- Max. turret rotation speed: 13 rotations per minute
- Materials: zinc, aluminum, stainless steel and plastic

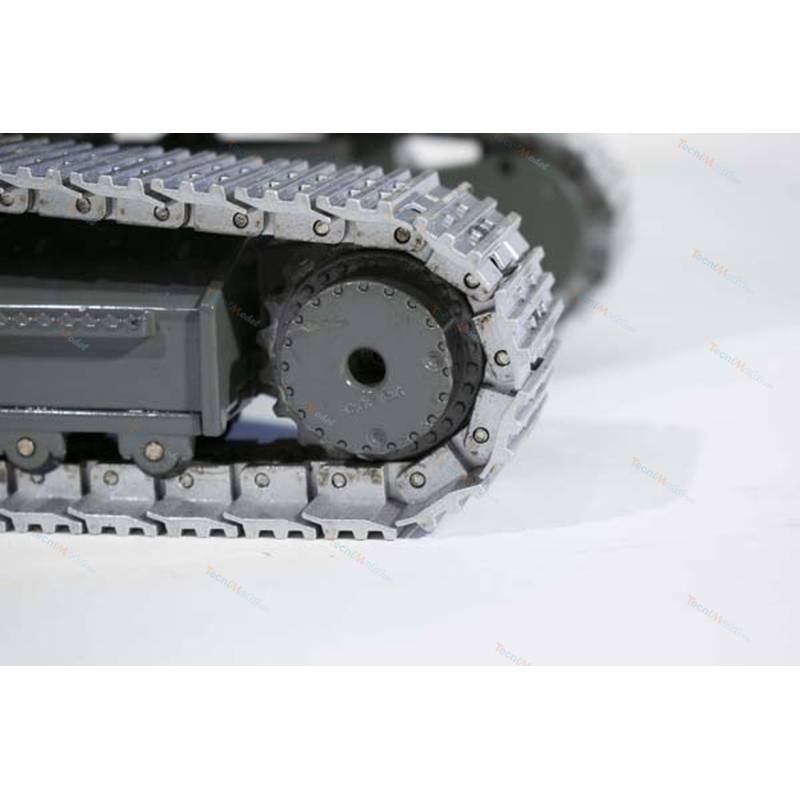

- Tracks: 40mm wide, aluminum
- Hydraulic lines: rigid brass lines and flexible nylon lines
- Hydraulic pump drive: 600KV brushless motor (requires 60A controller)
- Operating pressure: approx. 30 bar
- Track and turret drives: 3300KV brushless motors (require 30A controllers)
- Hydraulic system: aluminum spool valves, pressure gauge, 50ml oil tank and pressure regulator
- Operating voltage: 7.4V to 11.1V
Equipment required for operation (see "accessories" below):
- Radio remote control (minimum 7 channels), e.g. FlySky FS-i6S or FrSky Taranis X9 Lite
- 3 brushless 30A controllers (tracks and turret rotation), e.g. actro-marine 30A (ref: VAAE700342)
- 60A brushless controller (hydraulic pump)
- 2S or 3S Lipo battery
- Hydraulic oil
Recommended accessories:
| Length | Arm extended: approx. 80cm / Arm folded: approx. 60cm |
|---|---|
| Height | Arm extended: 598mm to bucket / Arm folded: 213mm to cab |
| Width | 196mm |
| Weight | 10.8kg |
| Scale | 1/14 |
| Voltage (V) | 7.4V to 11.1V |
| Delivered painted | Yes |
| Version | Kit |
| Mounting Type | Kit |
| Color | Yellow |
