LESU Aoue 225A RC Crank Logger 1/14 in kit
Manufactured by LESU
Metal, hydraulically-operated kit for assembly and painting of a machine designed for handling tree trunks at 1/14 scale - For experienced modellers
LESU RD-A0019-KIT
The LESU Aoue 225A is a machine designed for handling and loading logs/tree trunks. Its unique 3-wheel architecture makes it extremely maneuverable, whatever the terrain. This type of machine is commonly found in forestry operations in Africa, Asia, and South America, and also in sugar cane plantations for loading trucks. In 1/14 scale, it comes in kit to assemble and paint.
95% metal construction: stainless steel, brass and aluminum. Rare plastic parts are used for finishing.
- Hydraulic operation
- 4 hydraulic valves (arm, grapple rotation, grapple open/close, auxiliary channel)
- Pump with brushless motor + controller
- 2 brushless drive motors for high torque at low speeds
- Brushless controllers for the 2 propulsion motors
- Steering by varying the speed between the two drive wheels
- Rear idler wheel
- Driven by the 2 front wheels
- Welded stainless steel chassis
- 5 Spotlights LED lights (4 front, 1 rear)
- Lights module included
- Rotating beacon
Hardware required for operation (not included) :
- Minimum 8-channel radio control system
- 11.1V (3S) Lipo battery recommended
- Hydraulic oil

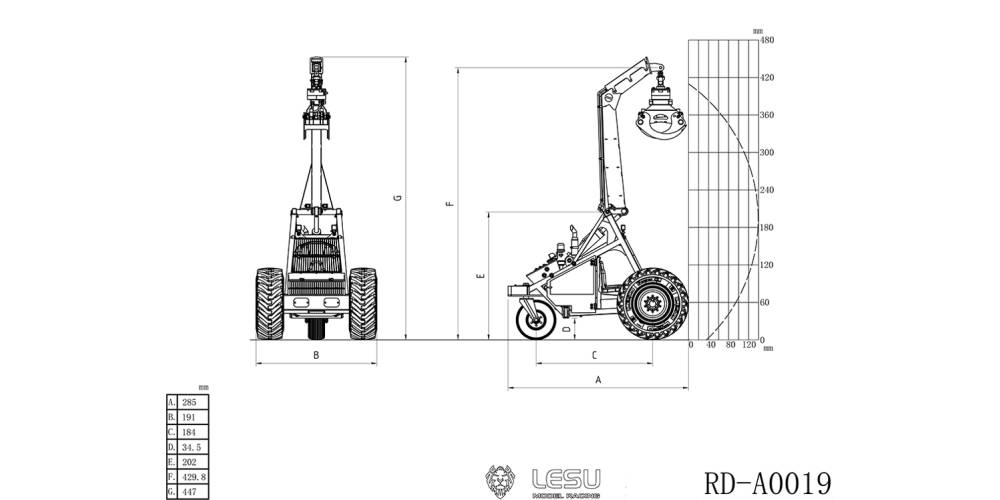

Dimensions :
Recommended accessories:
| Weight | Approx. 3.4kg |
|---|---|
| Scale | 1/14 |
| Manufacturer | LESU |
| Delivered painted | No |
| Mounting Type | Kit |
| Machine | LESU Aoue 225A RC Crank Logger |
