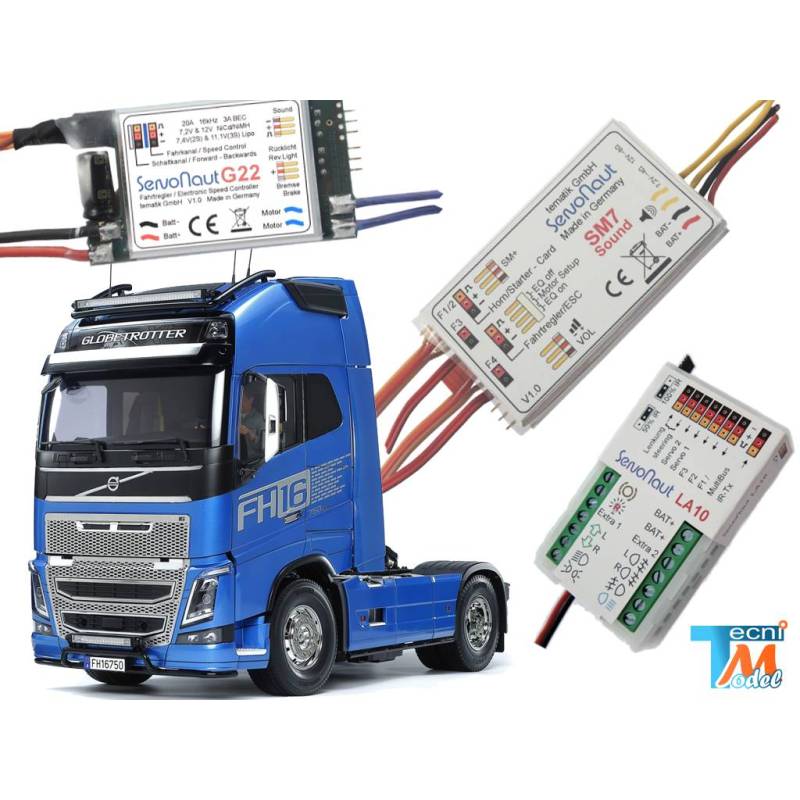

Servonaut Pack for the Volvo FH16 Tamiya 4x2 Radio-Controlled Truck

Sound Module Servonaut

Choose between the SM3 sound module ( Servonaut ) and the SM7 sound module ( Servonaut ).

Servonaut light module with integrated infrared transmitter

SERVONAUT LA10

Radio controlled truck light module, configurable and with integrated infrared emission function to wirelessly control the functions of a trailer.

With these features, the LA10 replaces 3 modules Servonaut: the ML4, the MM4 and the AIR-U, hence a simplified integration and the possibility of more advanced adjustments.

Warning: the installation of LEDs involves the use of resistors!

Characteristics:

• Operating voltage: 4.8V to 18V
• Dimensions: 53 x 32 x 19mm
• Output current: 10 x 700mA, protected against short circuits
• Connection to the battery by BEC socket.

Features

• Duties:
  • Flashing
  • hazard warning lights
  • Pilot lights
  • dipped-beam headlamps
  • front fog lamps
  • Rear fog lamps
  • main-beam headlamps
  • cornering lights.
  • Additional exit 1, choose between a universal exit, a parking/flash combination or a daytime running light.
  • Additional output 2, choose between a universal output or separate front fog lamps
• Integrated infrared control for trailer lights (Infrared LED to be acquired separately see "accessories" on this page.)
• Many programmable functions with a CARD programming board Servonaut (to be acquired separately see "accessories" on this page.) or radio controller Servonaut HS12
• Controllable with two or three channels or a "Multichannel" system
• Compatible with Robbe Multiswitch, Expert Graupner Nautic, MultiBus Servonaut
• 10 switching outputs
• 2 inputs servo directly transmitted by Infrared to the trailer to control functions such as crutches or lifting motors.
• 2 diagnostic LEDs

Available settings (by the Servonaut CARD available separately):

• Functions of Extra 1 and Extra 2 outputs
• Combined or non-combined rear lamps (combined or not stop lamps and night light)
• Adjustable bulb lights effect
• Adjustable brightness
• US rear lights
• Activation of cornering lights
• Hazard warning lamps which can be activated automatically in reverse
• Turn signals are configurable manually, by management or with a delay
• Mode Xenon

Contents of the box:

• Light source module LA10
• 3 receiver connection cords (depending on the installation method chosen, up to 3 additional cords may be required (see "accessories")
• Card printed for insertion into Servonaut CARD (Servonaut CARD not provided)
• Notice in French made by TECNIMODEL

Optional equipment available separately (see "accessories"):

• Carte de réglage Servonaut CARD
• AIR-DIODE/N infrared emission led
• AMO Servonaut infrared receiver for trailer
• Additional link cords with the receiver

MAN Headlights for Servonaut Pack

Choose between LED modules or a wired 3mm LED light bar.

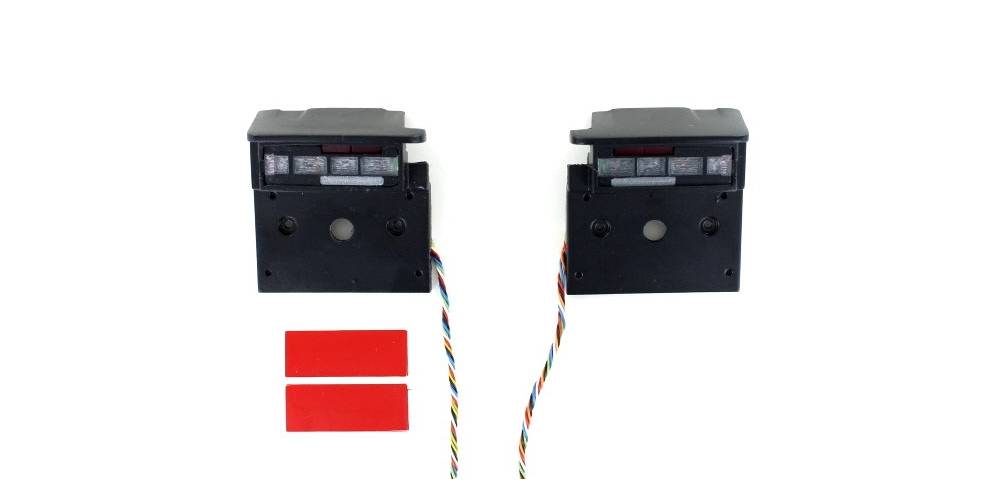

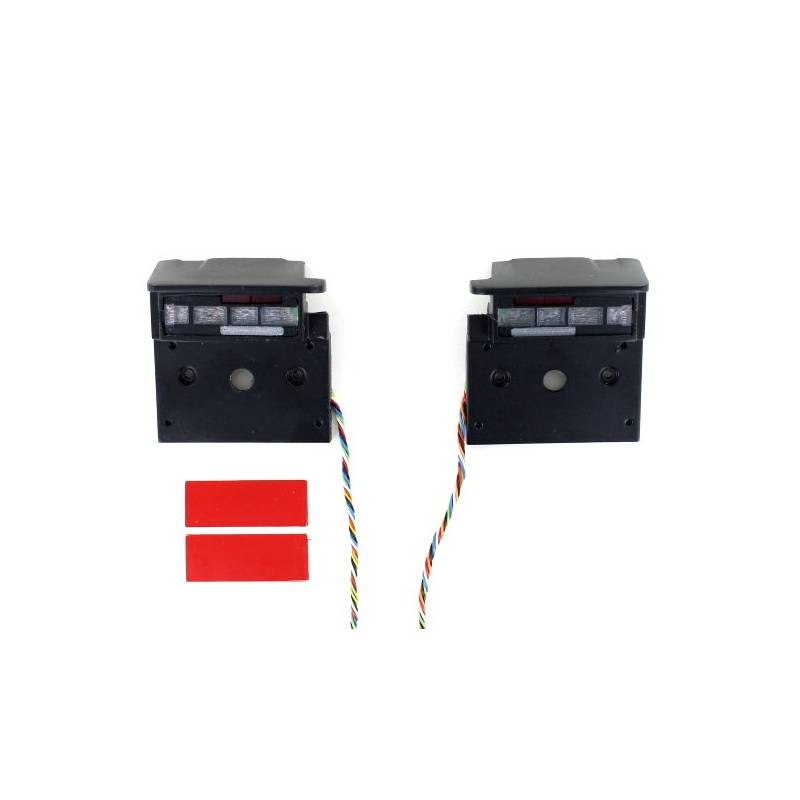

Rear lights for Servonaut combo pack

Choose between LED modules or a wired 3mm LED light bar.

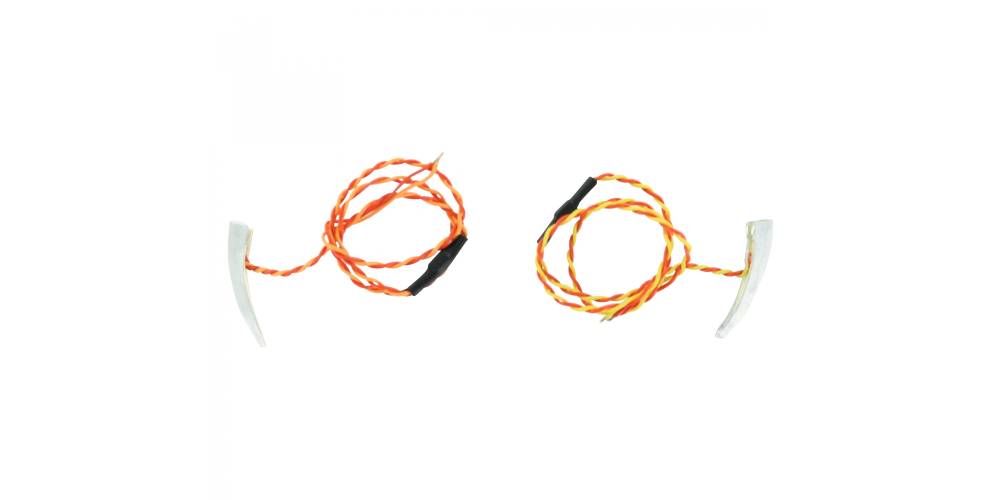

2 Front indicators for Volvo FH16 Tamiya 1/14

Pair of front turn signals for Volvo FH16 1/14 Tamiya (56360, 56362 and 56375). With deflectors incorporating SMD LEDs.

Allow rearward illumination as on the original.

Voltage from 6.6V to 15V.

Cable length: approx. 25cm

Not suitable for MFC-01 and MFC-03 systems from Tamiya.

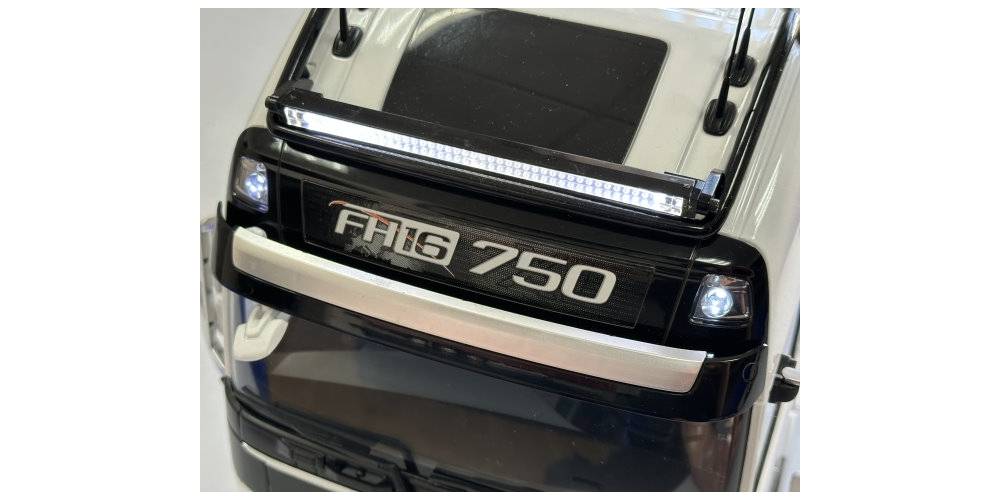

Additional led set for Volvo FH16 750 4x2 Tamiya 56375

Led kit for lighting all roof lights, high and low led bars and position lights for Volvo FH16 XL 750 4x2 1/14 tractor Tamiya ref: 56375.

Contents:

• 2 PCBs for roof lights (position lights + long-range lights)
• 2 white leds for high led bar
• 2 white leds for low led bar
• 4 orange leds for side marker lights

Power supply: 7.2V - 12V

Cannot be controlled by an MFC-01 or MFC-03 Tamiya.

Speaker rectangular VISATON SC 5.9 ND - 8 Ohms 90x50mm

Ref VISATON: 8056

Impedance: 8 Ohms

Maximum power: 4W

Dimensions: 90 mm x 50mm x 30mm

Rated power: 3 W

Maximum power: 4 W

Compatibility information of sound modules Servonaut: usable with the SM3 Servonaut in 7.2v and the SM7 in 12v.

[img-6699-left-large_default]

Speaker stand for Volvo FH16 and Scania 770S cabs Tamiya 1/14

TecniModel ACTM00058

Wooden bracket for ceiling mounting on Volvo FH16 and Scania 770S Tamiya 1/14 cabs.

Supplied with all necessary screws and bolts.

The bracket is designed for use with loudspeakers part numbers ACVI8056 and ACVI8055 (loudspeaker not included, see "accessories" below).

[img-26048-left-InProductPage]

Infrared LED Servonaut for LA10 or AIR4

Infrared diode for the light module Servonaut LA10

Replacement infrared diode for the AIR4 module (for AIR4 modules since 2012)

1 Parallel Y cable with JST/BEC connectors, 20AWG silicone wire

Y-cable for parallel connection of 2 batteries fitted with JST/BEC connectors, or for powering Servonaut modules from ESC S22, G22 or G24.

Parallel connection = double capacity, same voltage

JST/BEC connectors

20AWG 0.51mm² silicone cable

Two female BEC plugs to 1 male BEC plug

1x 10CM "patch" cable with 2 male servo-type JR plugs

10cm cable.

Each end has a universal male servo plug (suitable for Futaba / Graupner / Hitec, etc... ).

Suitable for connecting electronic modules together.

This is not a servo cable extension.

Delivery: 1 cord

Bipolar ON-ON lever switch

Ref 8011

- Type: on - on (= 2 positions)
- Lever: chromed brass
- Soldering pods
- Cut-off power: 5A/120VAC or 28VCC
- Contact resistance: max. 10Mohms
- Insulation resistance: 1000 Mohms

Ideal for the start-up and stop of the electronics on board a model of boat or truck.
