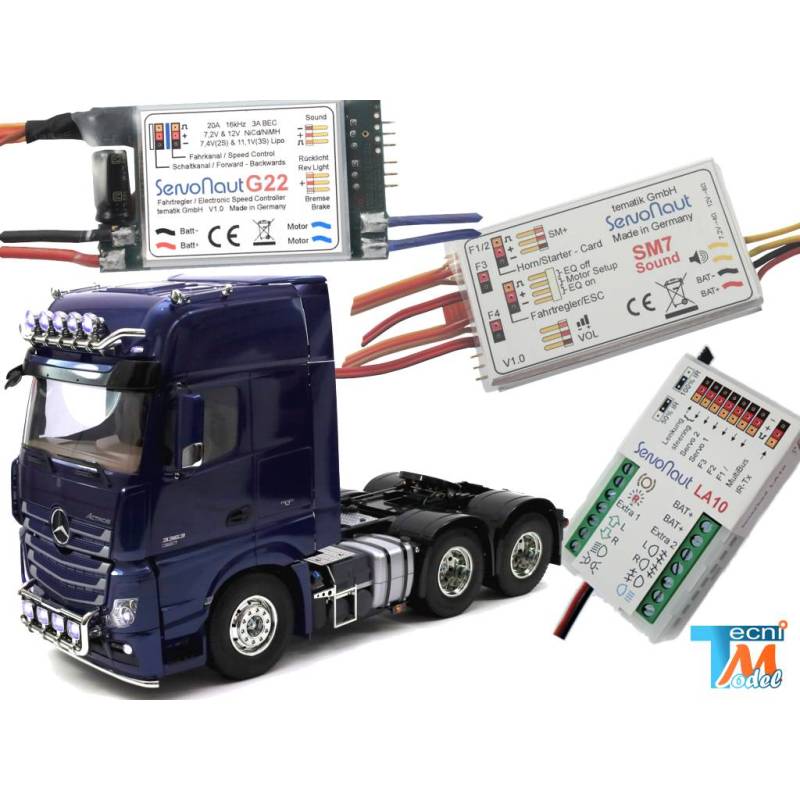

Servonaut modules combo pack for Mercedes Actros 6x4 Tamiya 1/14 RC trucks

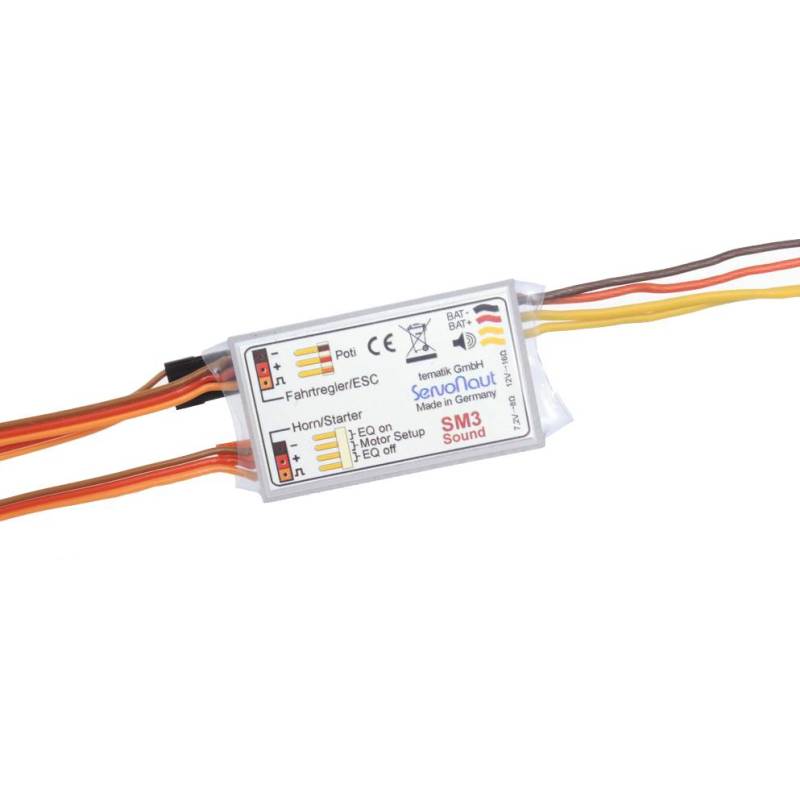

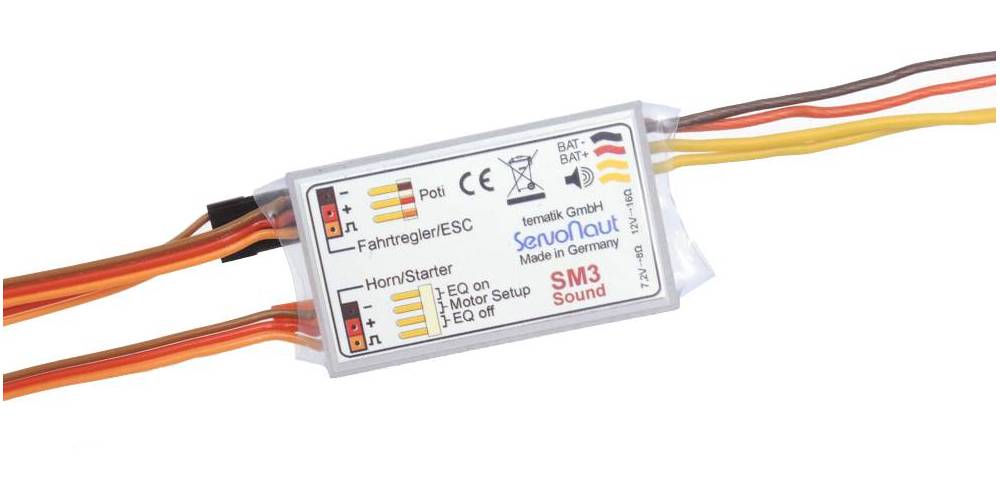

Sound Module Servonaut

Choose between the SM3 sound module ( Servonaut ) and the SM7 sound module ( Servonaut ).

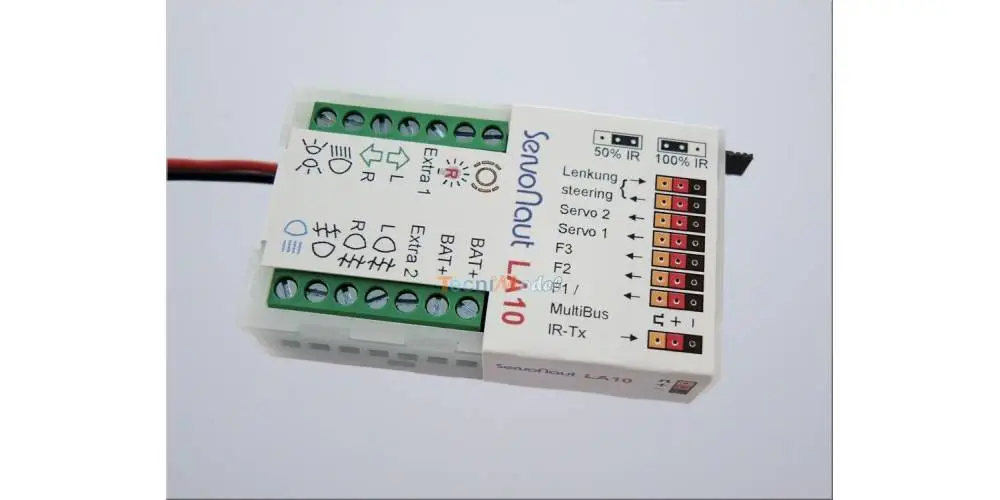

Servonaut light module with integrated infrared transmitter

SERVONAUT LA10

Radio controlled truck light module, configurable and with integrated infrared emission function to wirelessly control the functions of a trailer.

With these features, the LA10 replaces 3 modules Servonaut: the ML4, the MM4 and the AIR-U, hence a simplified integration and the possibility of more advanced adjustments.

Warning: the installation of LEDs involves the use of resistors!

Characteristics:

• Operating voltage: 4.8V to 18V
• Dimensions: 53 x 32 x 19mm
• Output current: 10 x 700mA, protected against short circuits
• Connection to the battery by BEC socket.

Features

• Duties:
  • Flashing
  • hazard warning lights
  • Pilot lights
  • dipped-beam headlamps
  • front fog lamps
  • Rear fog lamps
  • main-beam headlamps
  • cornering lights.
  • Additional exit 1, choose between a universal exit, a parking/flash combination or a daytime running light.
  • Additional output 2, choose between a universal output or separate front fog lamps
• Integrated infrared control for trailer lights (Infrared LED to be acquired separately see "accessories" on this page.)
• Many programmable functions with a CARD programming board Servonaut (to be acquired separately see "accessories" on this page.) or radio controller Servonaut HS12
• Controllable with two or three channels or a "Multichannel" system
• Compatible with Robbe Multiswitch, Expert Graupner Nautic, MultiBus Servonaut
• 10 switching outputs
• 2 inputs servo directly transmitted by Infrared to the trailer to control functions such as crutches or lifting motors.
• 2 diagnostic LEDs

Available settings (by the Servonaut CARD available separately):

• Functions of Extra 1 and Extra 2 outputs
• Combined or non-combined rear lamps (combined or not stop lamps and night light)
• Adjustable bulb lights effect
• Adjustable brightness
• US rear lights
• Activation of cornering lights
• Hazard warning lamps which can be activated automatically in reverse
• Turn signals are configurable manually, by management or with a delay
• Mode Xenon

Contents of the box:

• Light source module LA10
• 3 receiver connection cords (depending on the installation method chosen, up to 3 additional cords may be required (see "accessories")
• Card printed for insertion into Servonaut CARD (Servonaut CARD not provided)
• Notice in French made by TECNIMODEL

Optional equipment available separately (see "accessories"):

• Carte de réglage Servonaut CARD
• AIR-DIODE/N infrared emission led
• AMO Servonaut infrared receiver for trailer
• Additional link cords with the receiver

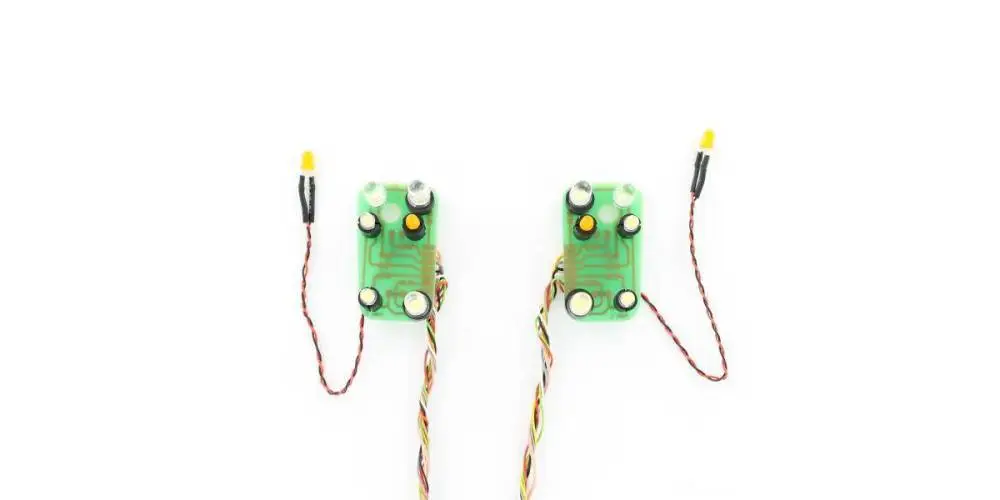

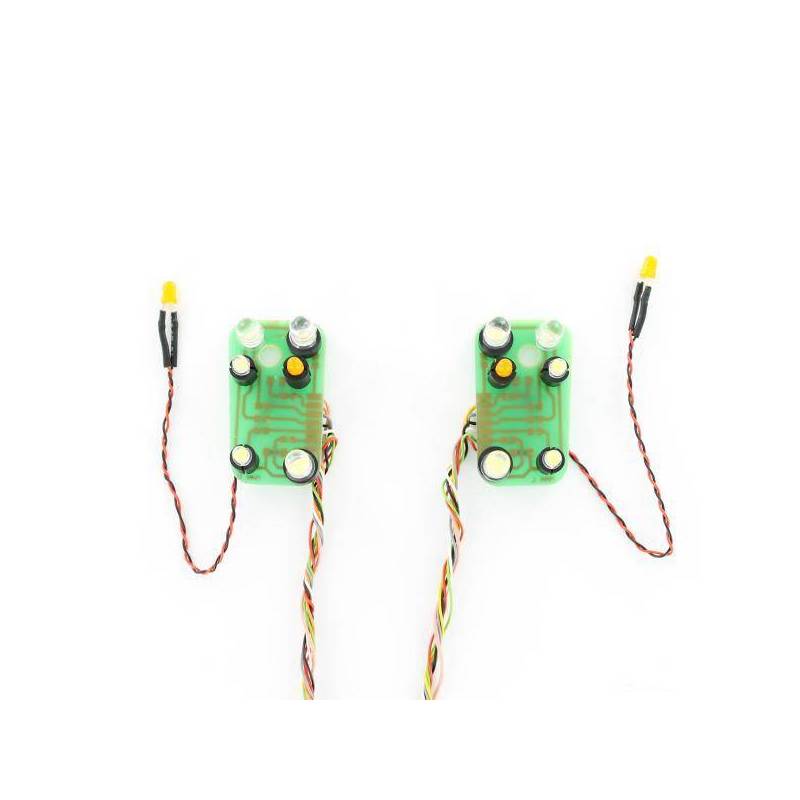

MAN Headlights for Servonaut Pack

Choose between LED modules or a wired 3mm LED light bar.

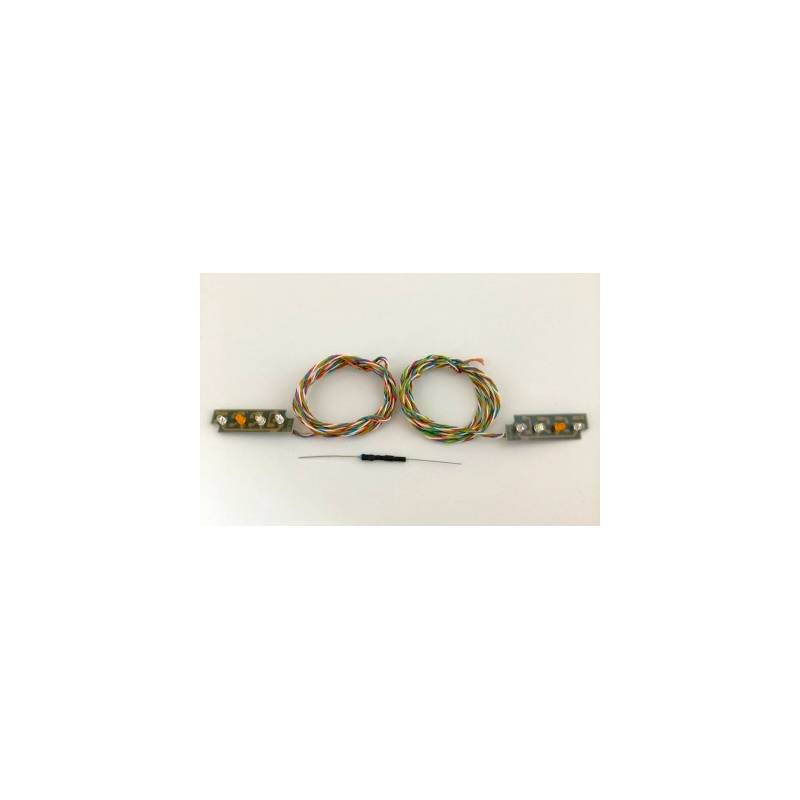

Rear lights for Servonaut combo pack

Choose between LED modules or a wired 3mm LED light bar.

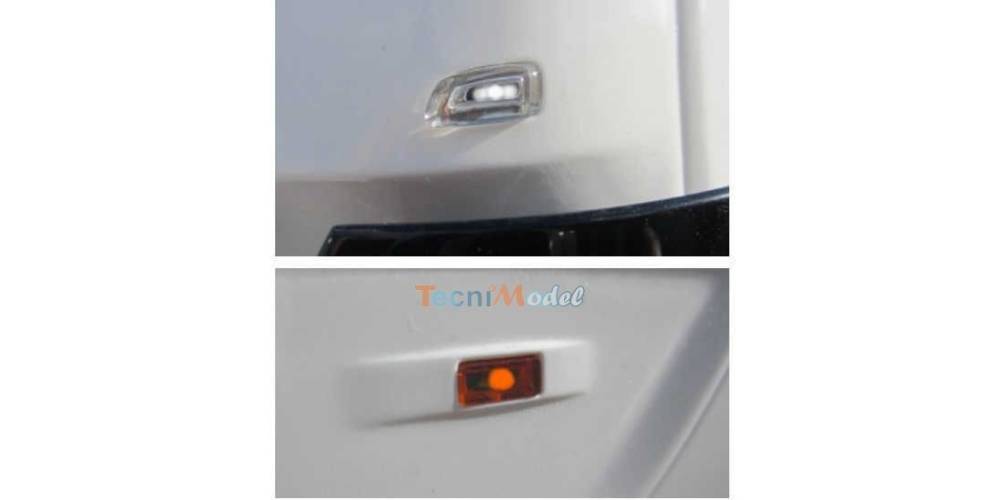

Clearance lights for Mercedes Actros and Arocs Tamiya 1/14 7,2V - 12V

Clearance light kit for Mercedes Actros and Arocs Tamiya 1/14 kits.

Contents:

• 2 white LEDs for roof lights
• 2 orange LEDs for side lights

Specifications:

• Operating voltage: 7.2-12V
• Cable length: approx. 300mm

Not compatible with TAMIYA MFC-01 and MFC-03.

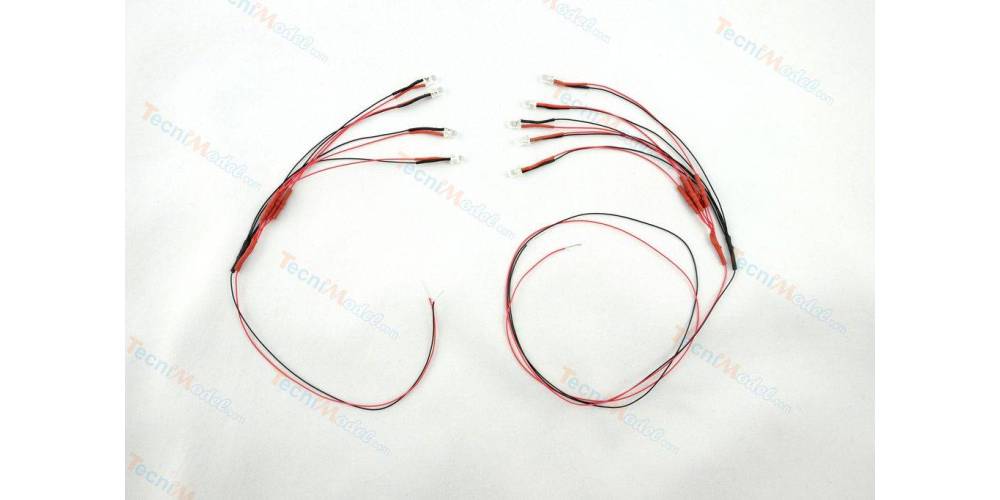

9 Ø3mm wired 7.2v high-brightness white LEDs for light strips on Mercedes Actros 3363 and Scania 770 S Tamiya 1/14

Set of wired led bundles with resistors for 7.2v power supply, with thin cable. For Tamiya Mercedes Actros 3363 and Scania 770 S kits ref: KCTA56348, KCTA56354 and KCTA56368. To facilitate installation in the model, the LED beams are wired as follows:

1. 4 LEDs wired in parallel
2. 5 leds wired in parallel

Contents:

• 4 high-brightness Ø3mm white LEDs - 25cm wire (low beam)
• 5 Ø3mm white high-brightness LEDs - 50cm wire (high beam)

Not suitable for connection to Tamiya multifunction system (MFC-01 or MFC-03).

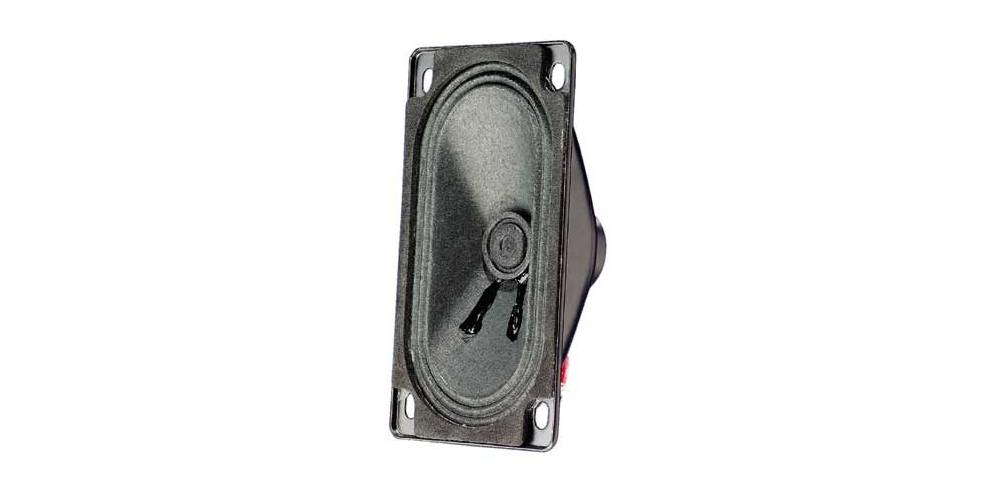

Speaker rectangular VISATON SC 5.9 ND - 8 Ohms 90x50mm

Ref VISATON: 8056

Impedance: 8 Ohms

Maximum power: 4W

Dimensions: 90 mm x 50mm x 30mm

Rated power: 3 W

Maximum power: 4 W

Compatibility information of sound modules Servonaut: usable with the SM3 Servonaut in 7.2v and the SM7 in 12v.

[img-6699-left-large_default]

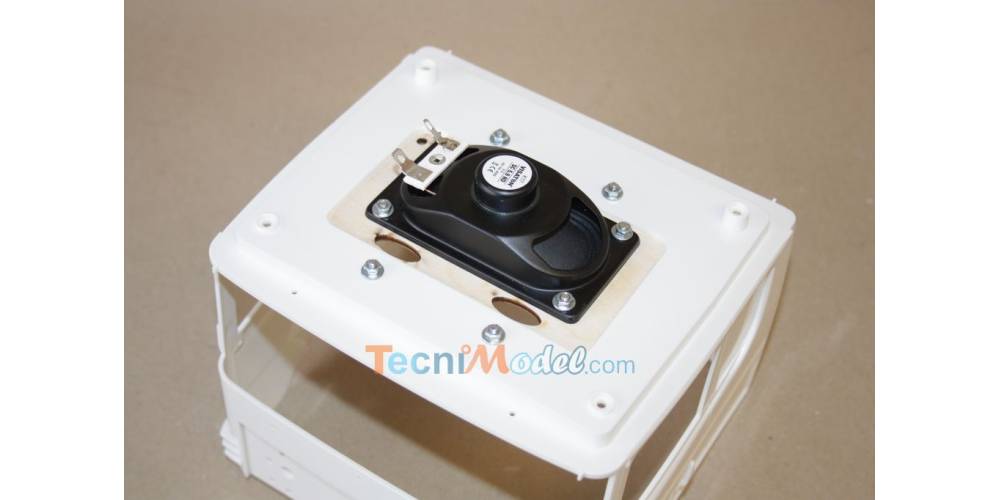

Speaker holder for Cab Actros or Scania Tamiya 1/14

ACTM00023

Wooden bracket to be attached to the ceiling of the cabins of Actros MP4 or Scania R470 / R620 Tamiya 1/14

Support is provided for acvi8056 and acvi8055 speakers (speaker not included, see "accessories")
[img-26048-left-InProductPage]

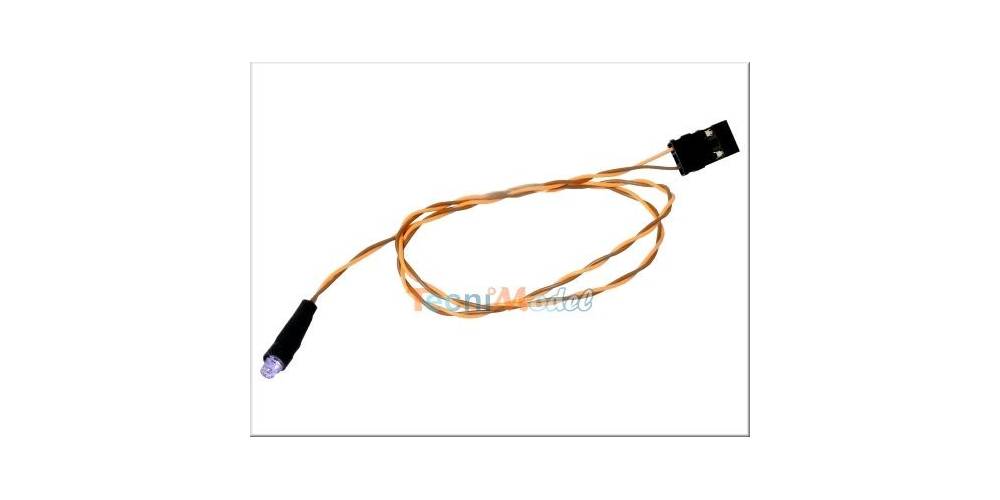

Infrared LED Servonaut for LA10 or AIR4

Infrared diode for the light module Servonaut LA10

Replacement infrared diode for the AIR4 module (for AIR4 modules since 2012)

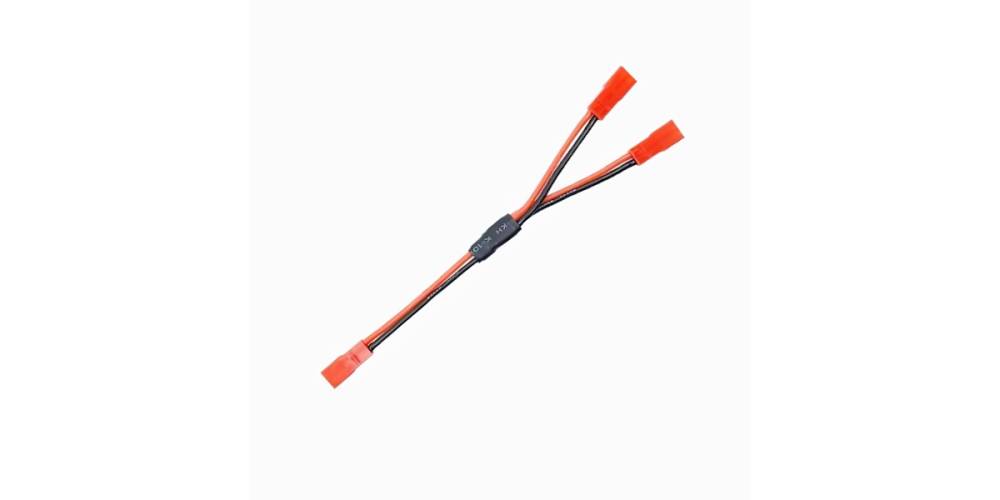

1 Parallel Y cable with JST/BEC connectors, 20AWG silicone wire

Y-cable for parallel connection of 2 batteries fitted with JST/BEC connectors, or for powering Servonaut modules from ESC S22, G22 or G24.

Parallel connection = double capacity, same voltage

JST/BEC connectors

20AWG 0.51mm² silicone cable

Two female BEC plugs to 1 male BEC plug

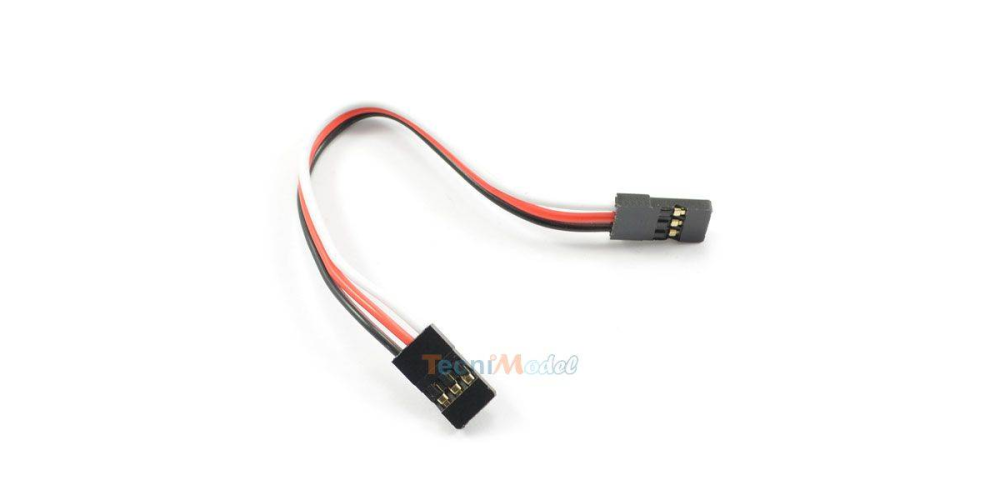

1x 10CM "patch" cable with 2 male servo-type JR plugs

10cm cable.

Each end has a universal male servo plug (suitable for Futaba / Graupner / Hitec, etc... ).

Suitable for connecting electronic modules together.

This is not a servo cable extension.

Delivery: 1 cord

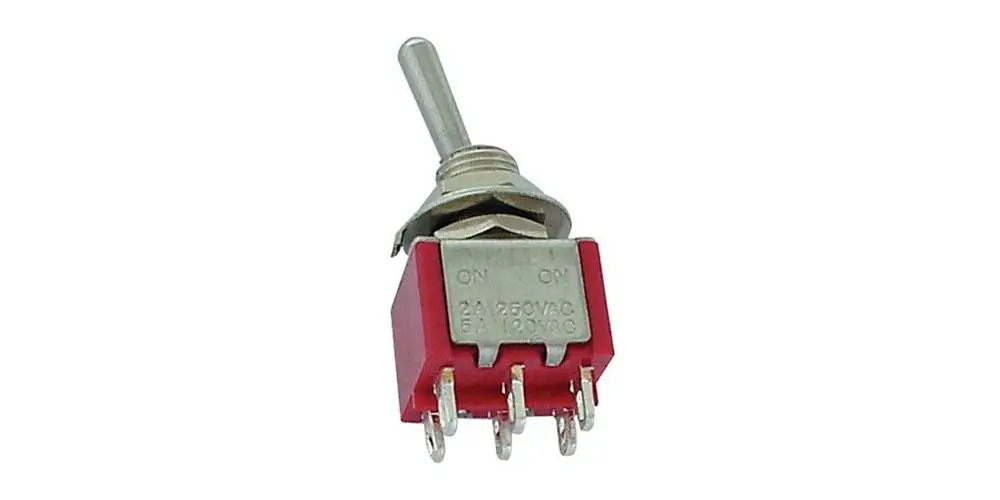

Bipolar ON-ON lever switch

Ref 8011

- Type: on - on (= 2 positions)
- Lever: chromed brass
- Soldering pods
- Cut-off power: 5A/120VAC or 28VCC
- Contact resistance: max. 10Mohms
- Insulation resistance: 1000 Mohms

Ideal for the start-up and stop of the electronics on board a model of boat or truck.
