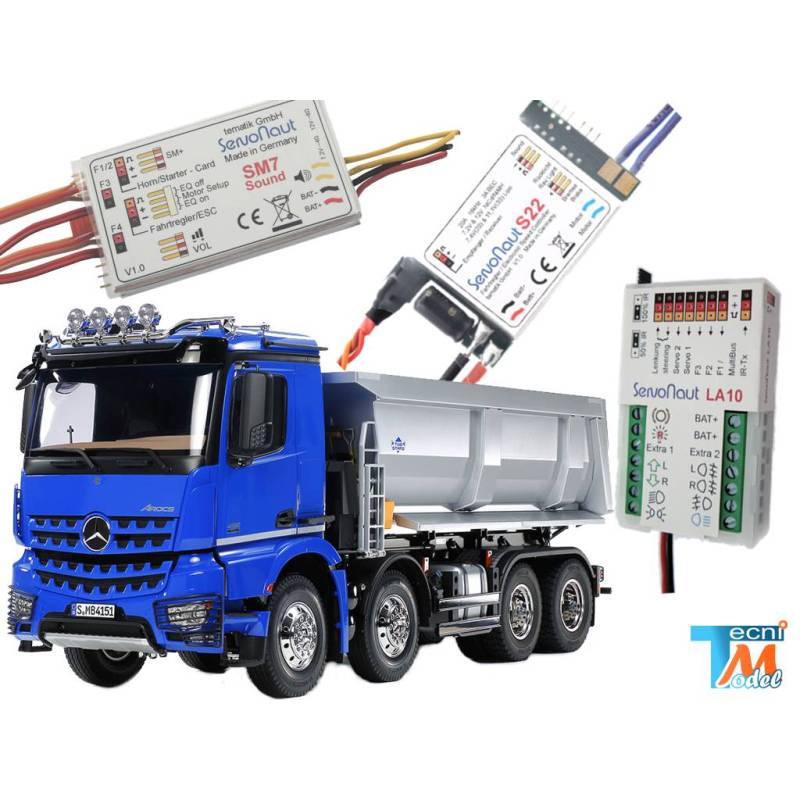

Servonaut modules combo pack for Tamiya 1/14 RC Mercedes Arocs 4151 8x4 Tipper Trucks

Sound Module Servonaut

Choose between the SM3 sound module ( Servonaut ) and the SM7 sound module ( Servonaut ).

Servonaut light module with integrated infrared transmitter

SERVONAUT LA10

Radio controlled truck light module, configurable and with integrated infrared emission function to wirelessly control the functions of a trailer.

With these features, the LA10 replaces 3 modules Servonaut: the ML4, the MM4 and the AIR-U, hence a simplified integration and the possibility of more advanced adjustments.

Warning: the installation of LEDs involves the use of resistors!

Characteristics:

• Operating voltage: 4.8V to 18V
• Dimensions: 53 x 32 x 19mm
• Output current: 10 x 700mA, protected against short circuits
• Connection to the battery by BEC socket.

Features

• Duties:
  • Flashing
  • hazard warning lights
  • Pilot lights
  • dipped-beam headlamps
  • front fog lamps
  • Rear fog lamps
  • main-beam headlamps
  • cornering lights.
  • Additional exit 1, choose between a universal exit, a parking/flash combination or a daytime running light.
  • Additional output 2, choose between a universal output or separate front fog lamps
• Integrated infrared control for trailer lights (Infrared LED to be acquired separately see "accessories" on this page.)
• Many programmable functions with a CARD programming board Servonaut (to be acquired separately see "accessories" on this page.) or radio controller Servonaut HS12
• Controllable with two or three channels or a "Multichannel" system
• Compatible with Robbe Multiswitch, Expert Graupner Nautic, MultiBus Servonaut
• 10 switching outputs
• 2 inputs servo directly transmitted by Infrared to the trailer to control functions such as crutches or lifting motors.
• 2 diagnostic LEDs

Available settings (by the Servonaut CARD available separately):

• Functions of Extra 1 and Extra 2 outputs
• Combined or non-combined rear lamps (combined or not stop lamps and night light)
• Adjustable bulb lights effect
• Adjustable brightness
• US rear lights
• Activation of cornering lights
• Hazard warning lamps which can be activated automatically in reverse
• Turn signals are configurable manually, by management or with a delay
• Mode Xenon

Contents of the box:

• Light source module LA10
• 3 receiver connection cords (depending on the installation method chosen, up to 3 additional cords may be required (see "accessories")
• Card printed for insertion into Servonaut CARD (Servonaut CARD not provided)
• Notice in French made by TECNIMODEL

Optional equipment available separately (see "accessories"):

• Carte de réglage Servonaut CARD
• AIR-DIODE/N infrared emission led
• AMO Servonaut infrared receiver for trailer
• Additional link cords with the receiver

MAN Headlights for Servonaut Pack

Choose between LED modules or a wired 3mm LED light bar.

Rear lights for Servonaut combo pack

Choose between LED modules or a wired 3mm LED light bar.

Clearance lights for Mercedes Actros and Arocs Tamiya 1/14 7,2V - 12V

Clearance light kit for Mercedes Actros and Arocs Tamiya 1/14 kits.

Contents:

• 2 white LEDs for roof lights
• 2 orange LEDs for side lights

Specifications:

• Operating voltage: 7.2-12V
• Cable length: approx. 300mm

Not compatible with TAMIYA MFC-01 and MFC-03.

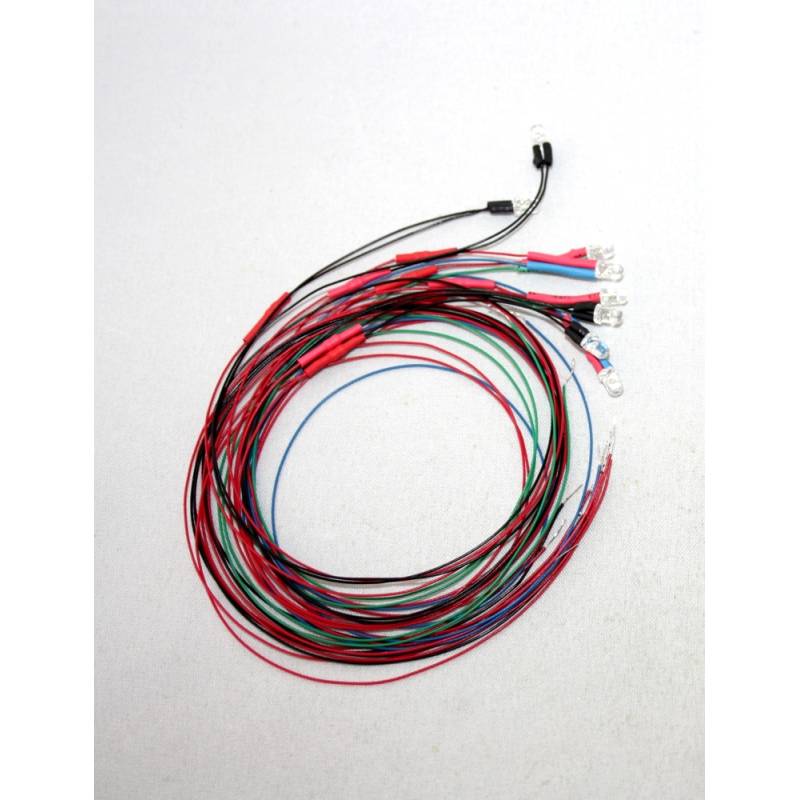

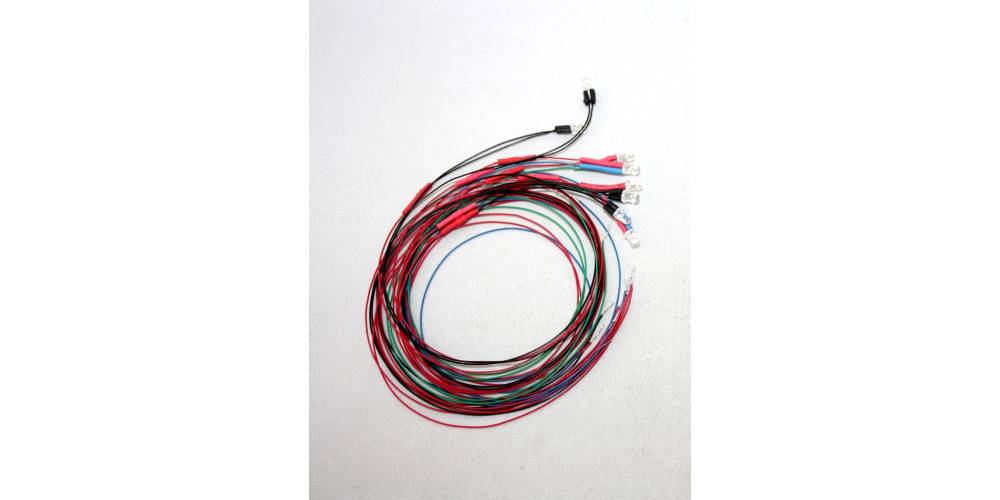

7.2V Leds wiring for Arocs 4151 8x4 tipper Tamiya

Set of Ø3mm LEDs, pre-wired, for side clearance lights, sun visor lights and roof ramp spotlights.

For 7.2V supply.

Contents:

• 2 Ø3mm white low-brightness LEDs for sun visor pilot lights
• 4 Ø3mm orange low-brightness LEDs for side marker lights
• 4 Ø3mm white high-brightness LEDs for roof ramp lights

Not suitable for connection to Tamiya multifunction system (MFC-01 or MFC-03)

8 Ohm 5W rectangular miniature loudspeaker

Servonaut Laut89

Very slim loudspeaker for easy installation in low cab roofs.

Rectangular format: 90x40x14mm

Impedance: 8 Ohms

Maximum power: 5W

Recommended for use with Servonaut SM7 12V and SM3 7.2V sound modules.

[img-22505-left-large_default]

Speaker stand for Volvo FH16 and Scania 770S cabs Tamiya 1/14

TecniModel ACTM00058

Wooden bracket for ceiling mounting on Volvo FH16 and Scania 770S Tamiya 1/14 cabs.

Supplied with all necessary screws and bolts.

The bracket is designed for use with loudspeakers part numbers ACVI8056 and ACVI8055 (loudspeaker not included, see "accessories" below).

[img-26048-left-InProductPage]

1 Parallel Y cable with JST/BEC connectors, 20AWG silicone wire

Y-cable for parallel connection of 2 batteries fitted with JST/BEC connectors, or for powering Servonaut modules from ESC S22, G22 or G24.

Parallel connection = double capacity, same voltage

JST/BEC connectors

20AWG 0.51mm² silicone cable

Two female BEC plugs to 1 male BEC plug

1x 10CM "patch" cable with 2 male servo-type JR plugs

10cm cable.

Each end has a universal male servo plug (suitable for Futaba / Graupner / Hitec, etc... ).

Suitable for connecting electronic modules together.

This is not a servo cable extension.

Delivery: 1 cord

Bipolar ON-ON lever switch

Ref 8011

- Type: on - on (= 2 positions)
- Lever: chromed brass
- Soldering pods
- Cut-off power: 5A/120VAC or 28VCC
- Contact resistance: max. 10Mohms
- Insulation resistance: 1000 Mohms

Ideal for the start-up and stop of the electronics on board a model of boat or truck.

Prise tamiya mâle
