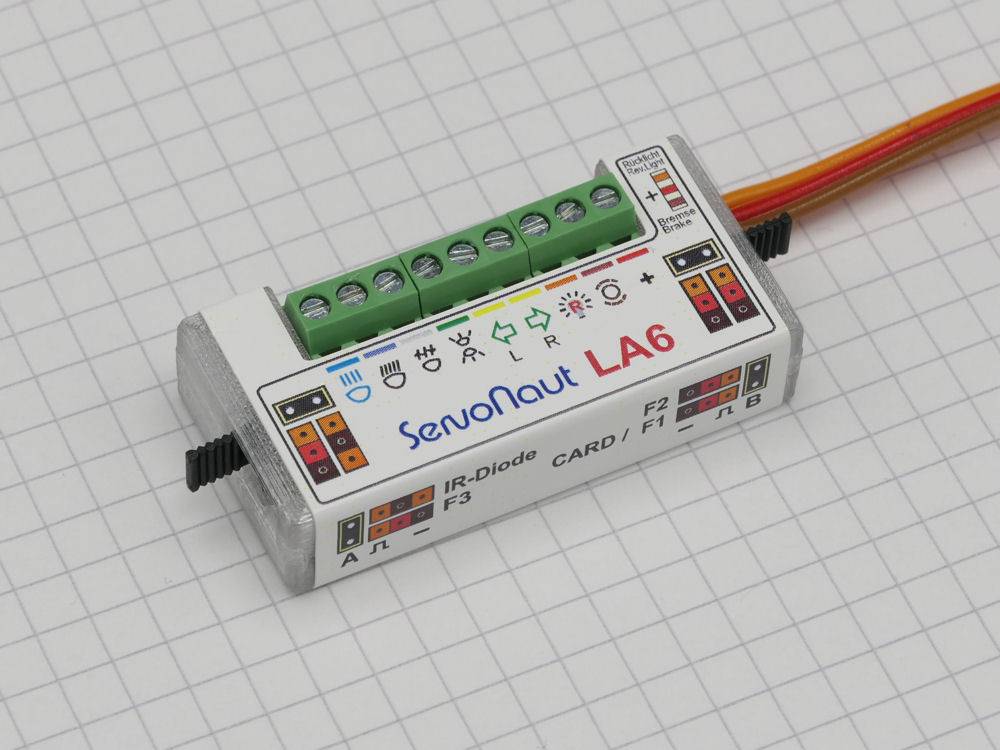

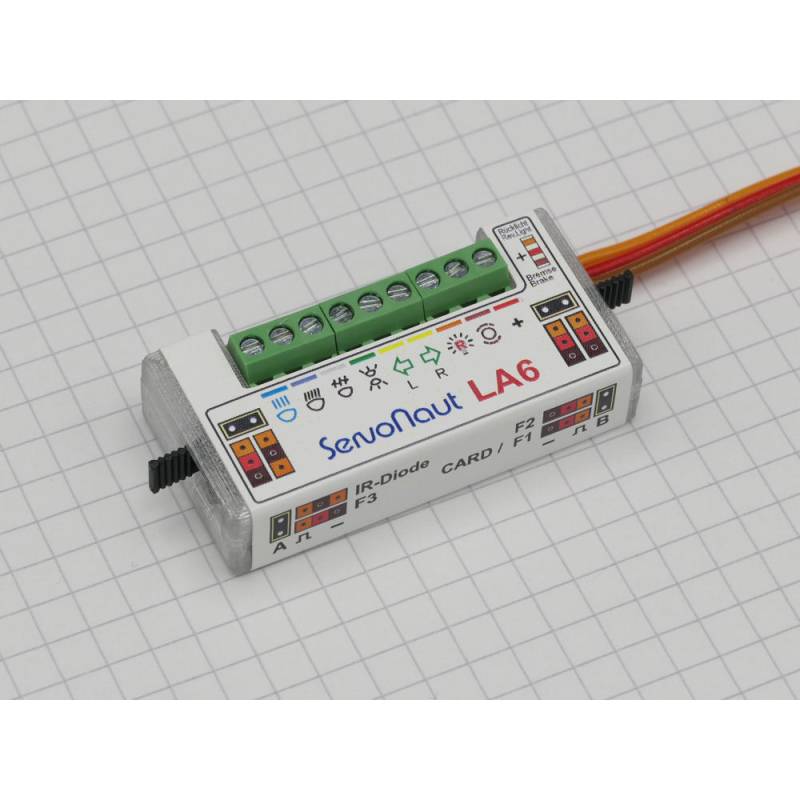

Servonaut LA6

Light module for radio-controlled trucks, configurable and with integrated infrared transmitter function for a trailer.

For infrared emission, add an infrared emission LED (not supplied, see "accessories" and instructions below).

Features :

• Operating voltage: 7.2V to 14.4V
• Functions
  • nightlights
  • direction indicators
  • hazard lights
  • low beam
  • high beam
  • additional output for fog lights, for example
• Outputs: 8 x 700mA, protected against short-circuit and overload, with screw terminals
• Dimensions: 48x25x13mm
• Integrated infrared control for trailer lights, multibus/multiswitch and S-Bus compatible, numerous functions programmable with the Servonaut CARD programming card

Differences with the Servonaut LA10 module:

Compared with the LA10, the LA6 does NOT include the following outputs:

• Turn light
• Additional "Extra 1" output, choose between a universal output, a parking/flash combination or a daytime running light
• Additional "Extra 2" output,, choose between universal output or separate front fog lights
• Connected to the receiver in the conventional way, the LA6 transmits just one radio control channel to the trailer's AMO infrared receiver

Unlike the LA10, the LA6 can be controlled via the receiver's S-Bus port. In this case, the LA6 can transmit two radio control channels to the trailer's AMO infrared receiver.

Box contents :

• LA6 lighting module with 2 jumpers
• 2 patch cords
• Cards for Servonaut CARD (in German and English)
• German, English and French instructions by Tecnimodel

Infrared LEDs for trailer control (not supplied):

• Infrared transmitter diode for LA6 + patch cable (ref: ACSEIRSET)
• Infrared diode for LA10 or AIR4 (ref: ACSEAIRDIODEN)

It is also possible to use the infrared LED provided for the LA10 (ref: ACSEAIRDIODEN), but in this case, connect the orange wire next to the jumper side. Only short-range transmission is possible.
