LESU hydraulic forestry crane kit for 1/14 scale radio-controlled truck

Hydraulic forestry crane kit for 1/14 scale radio-controlled truck

Manufactured by LESU

For experienced modellers

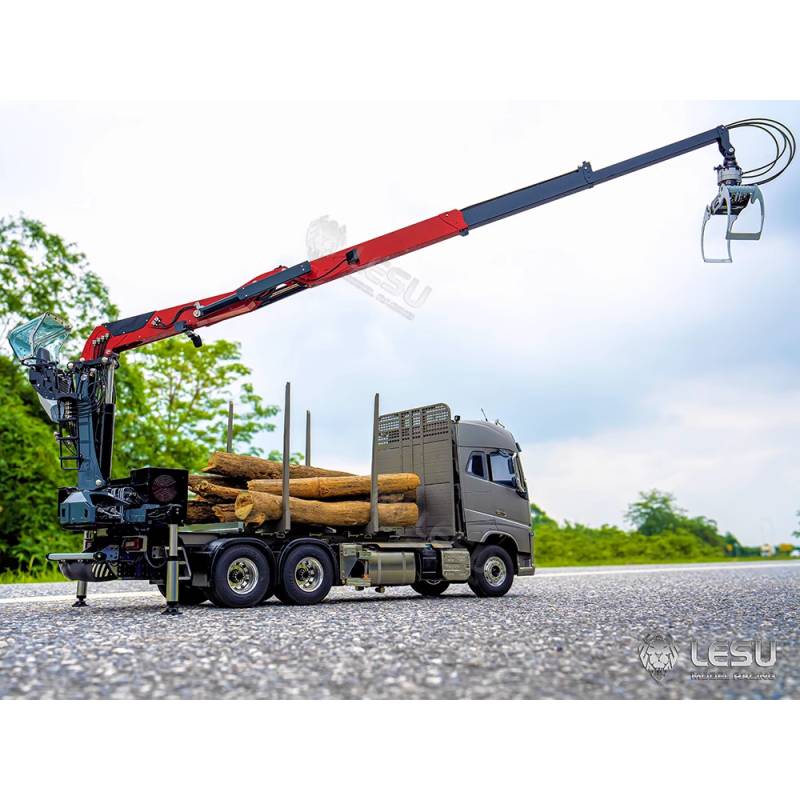

All-metal, functional kit to build and paint of a 1/14-scale hydraulic forestry crane for radio-controlled trucks.

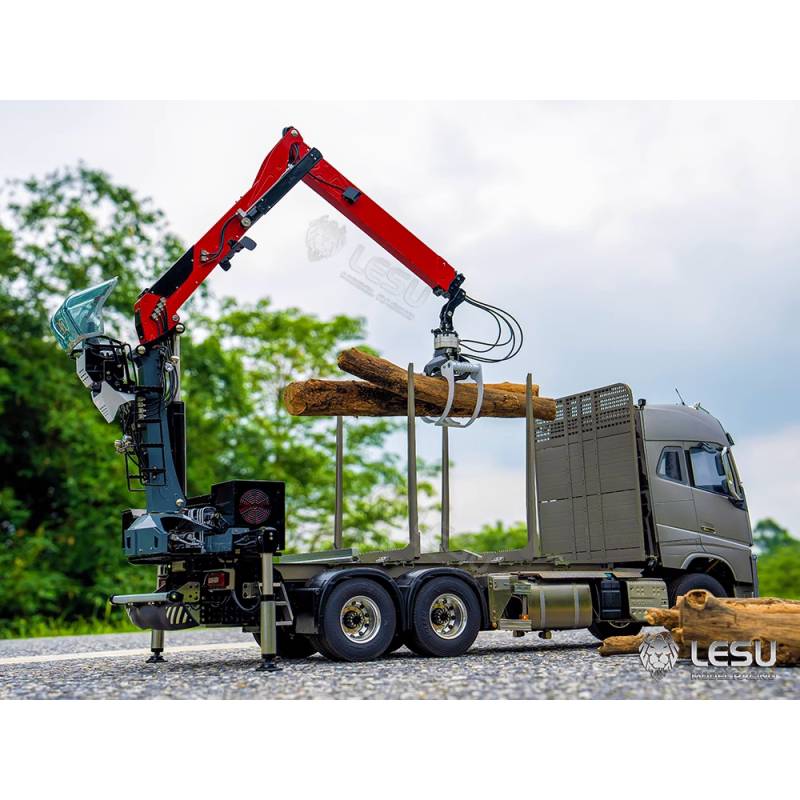

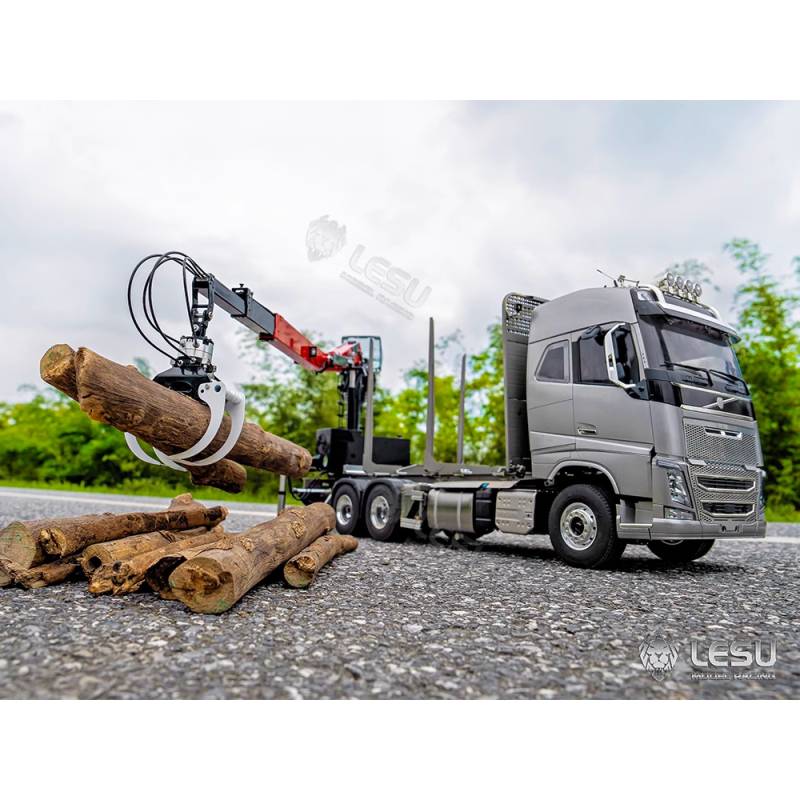

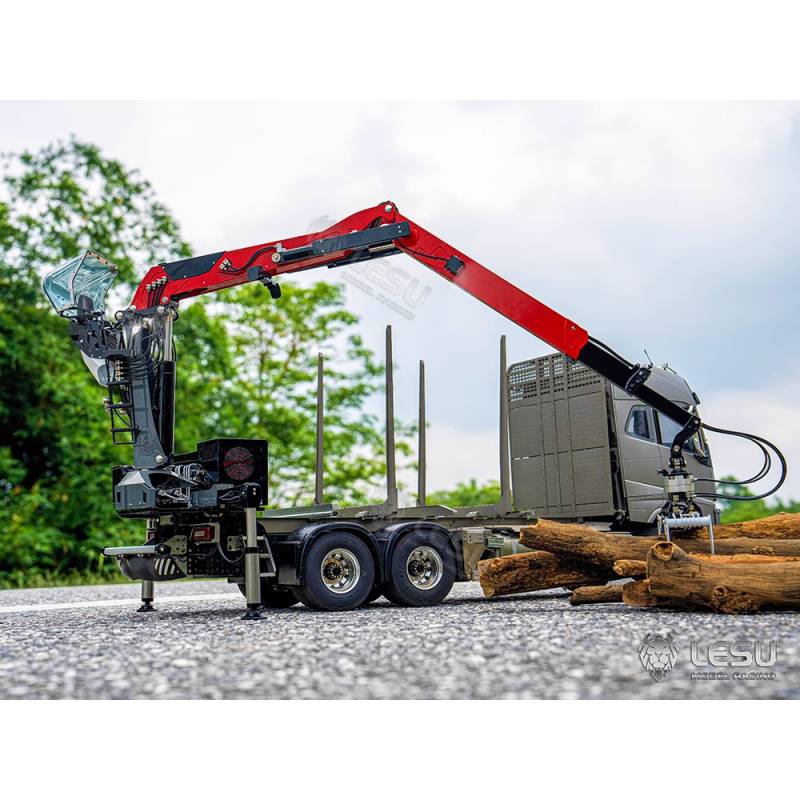

Telescopic Z-crane designed for installation on the rear of the Tamiya Volvo FH16 timber truck ref : KCTA56360. For easier installation, we recommend using the rear structure ref: PCLUL1031.

Details :

• Kit to assemble and paint in stainless steel, brass and aluminum
• Operating pressure: up to 30 bar
• Operating voltage: 7.2V-12V (LiPo recommended)

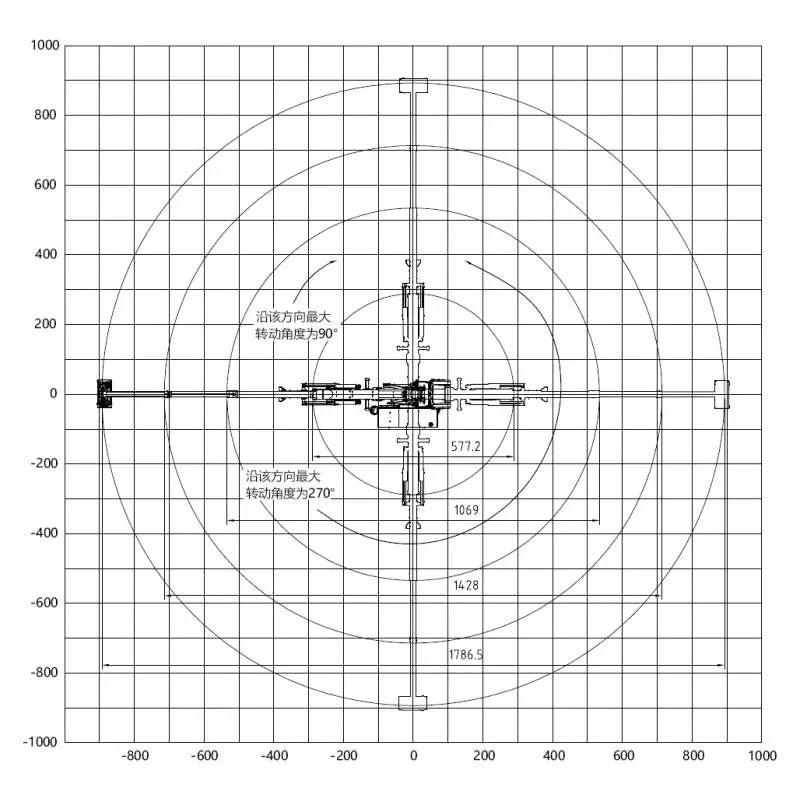

• Crane rotation via 2 hydraulic cylinders at base
• Double telescoping

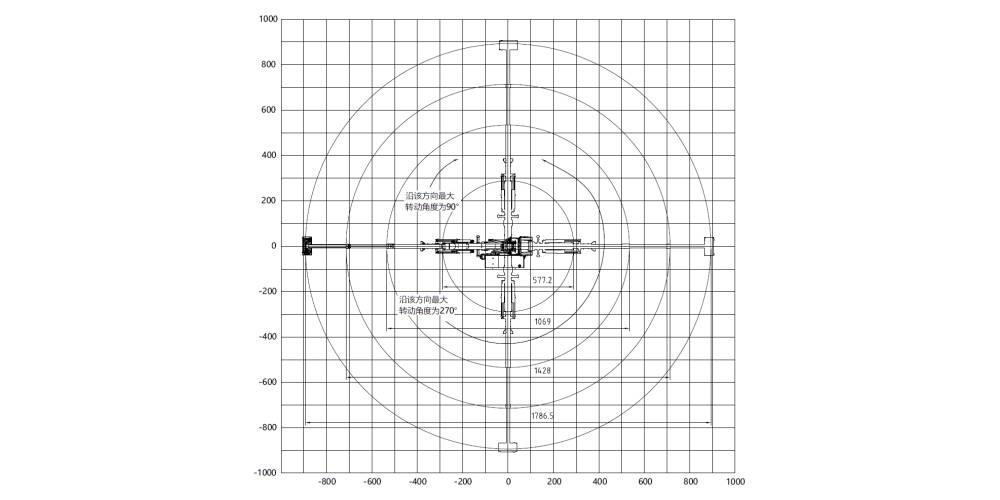

• Reach: approx. 880mm

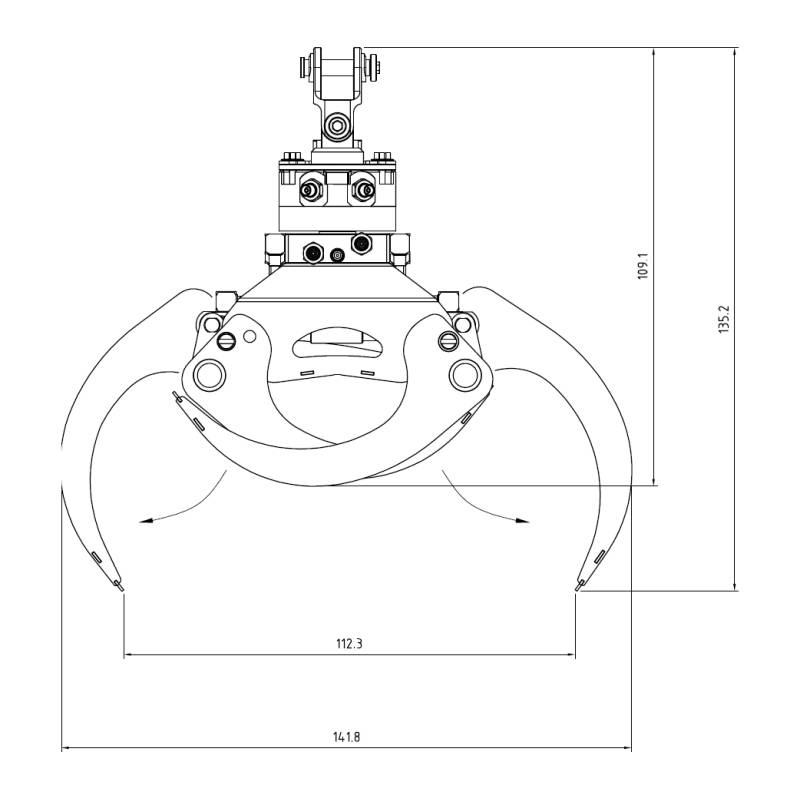

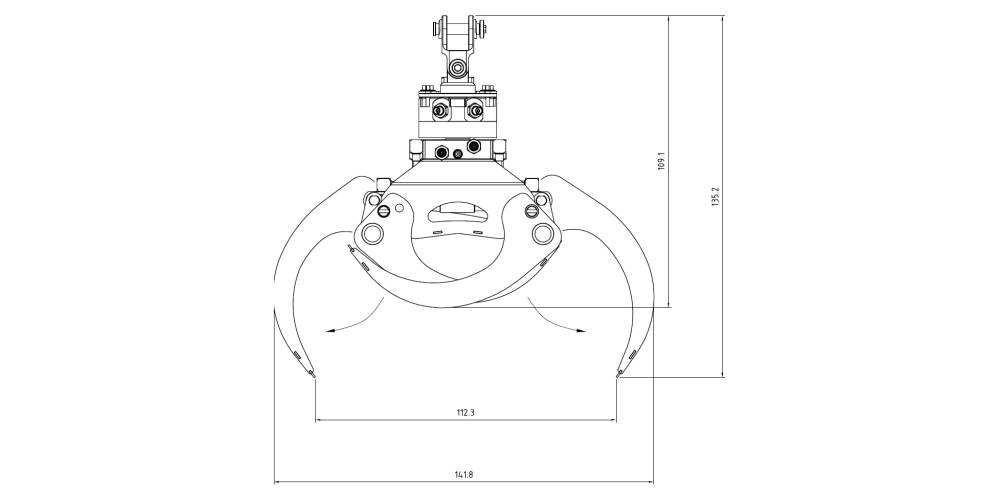

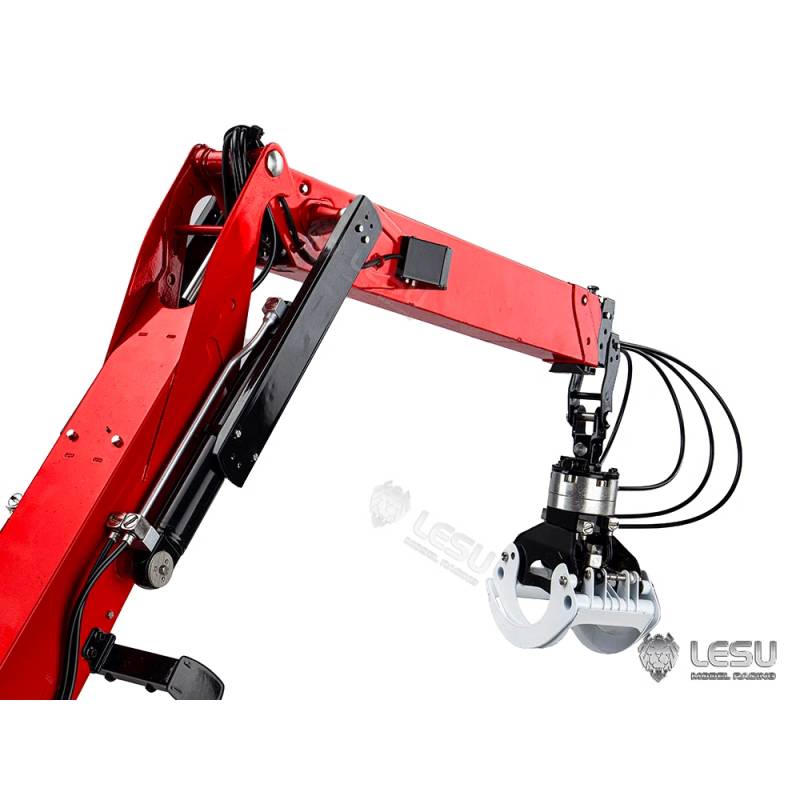

• Hydraulic log grapple
• Hydraulic rotating head

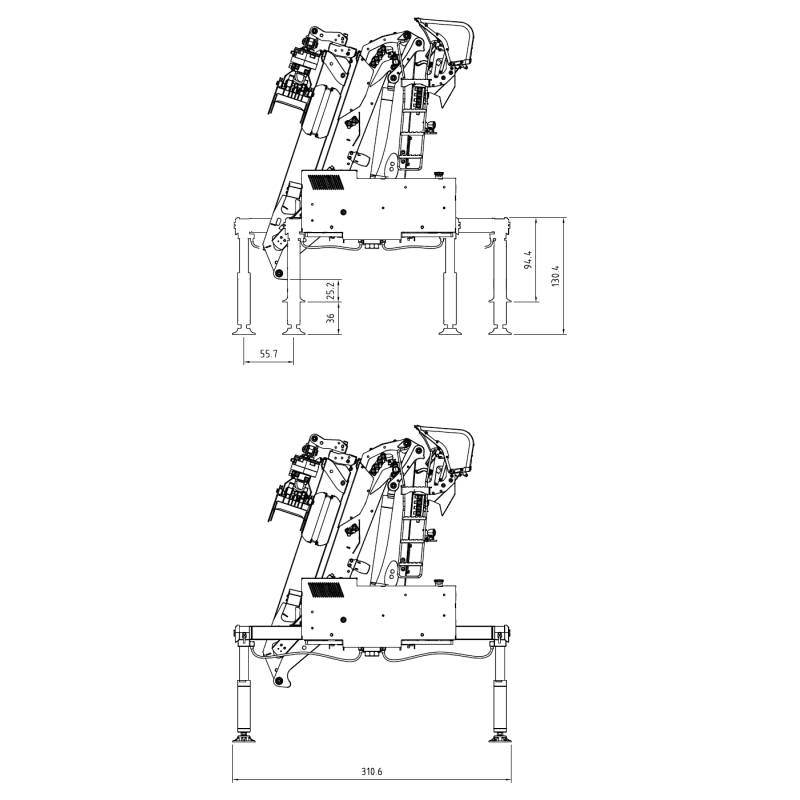

• With extendable stabilizers
• 2 spotlights on the boom and 6 spotlights on the crane mast for 360° illumination

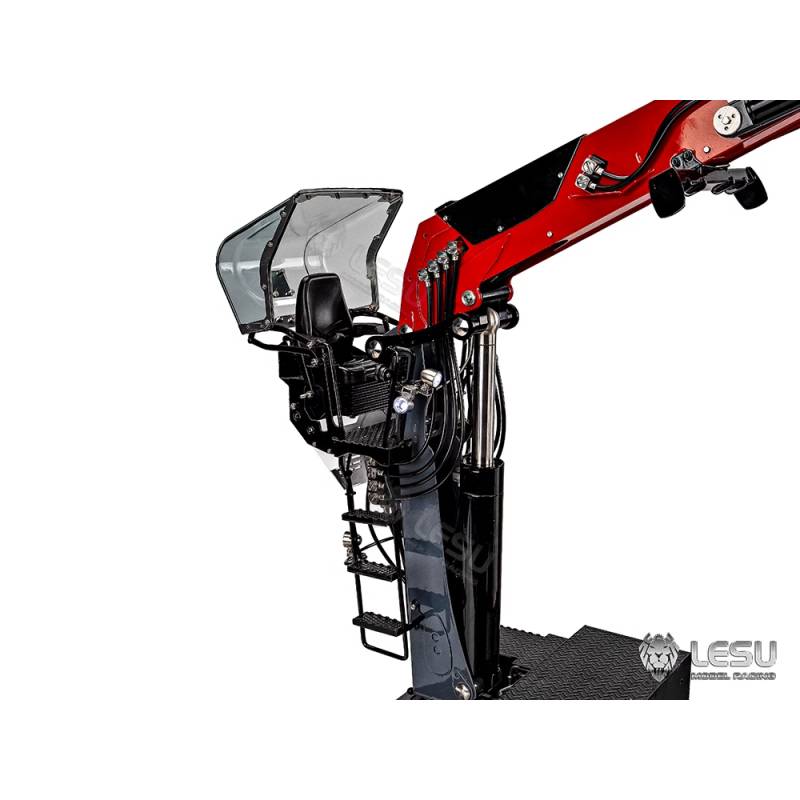

• Faithfully reproduced cockpit with folding protection
• With extendable stabilizers

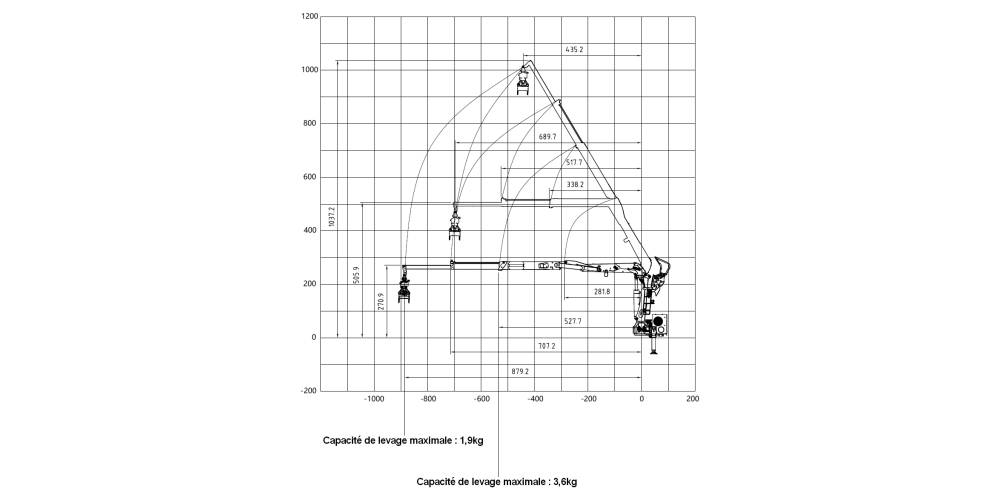

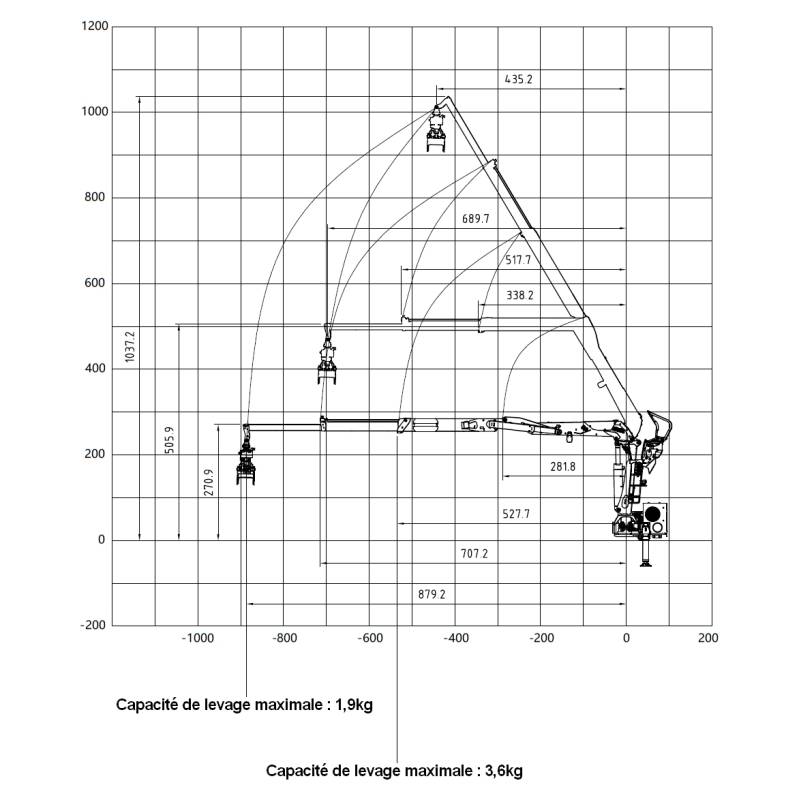

• Lifting capacity at 530mm: approx. 3.6kg
• Lifting capacity at 880mm: approx. 1.9kg

Scope of delivery:

• Assembly kit for forestry crane
• Hydraulic pump with brushless motor
• Brushless controller for hydraulic pump included
• Block of 8 spool valves with servos installed
• Hydraulic cylinders
• All necessary hoses and fittings
• Assembly instructions and hydraulic diagrams

Requires 9 channels, with minimum 7 proportional channels for crane control. We recommend the use of 3D-gimbal radio controls such as the Fr-Sky Tandem XE or the FlySky Paladin PL18 to get the most out of the crane and ensure smooth, coordinated movements.

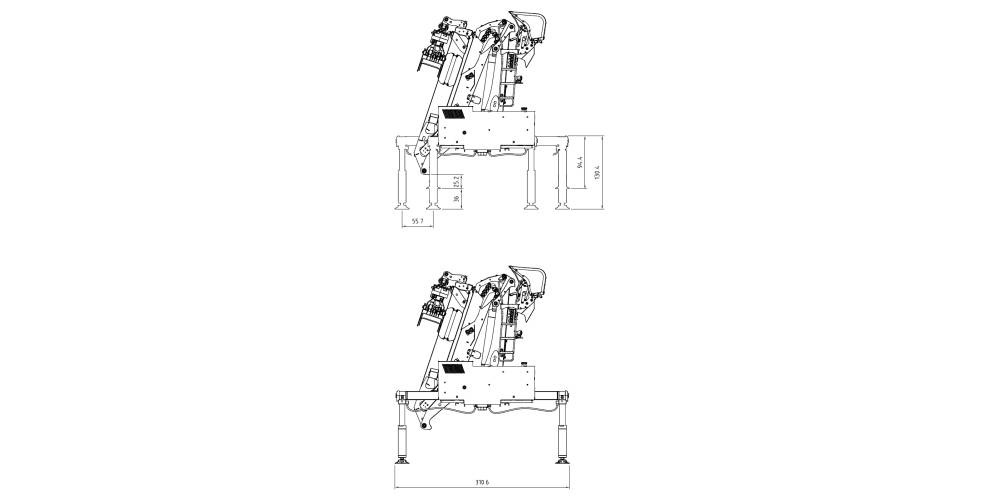

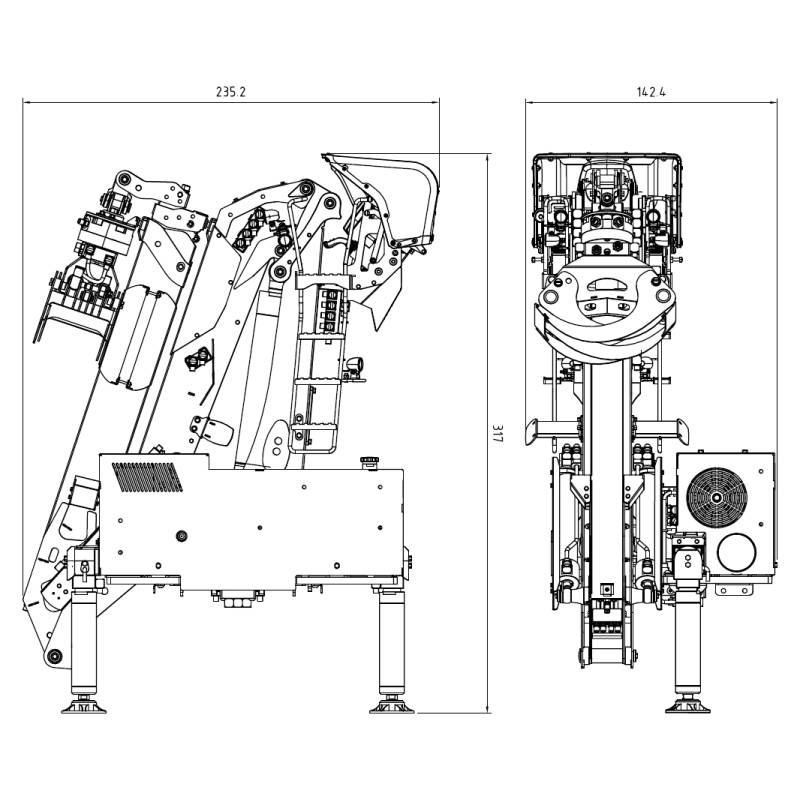

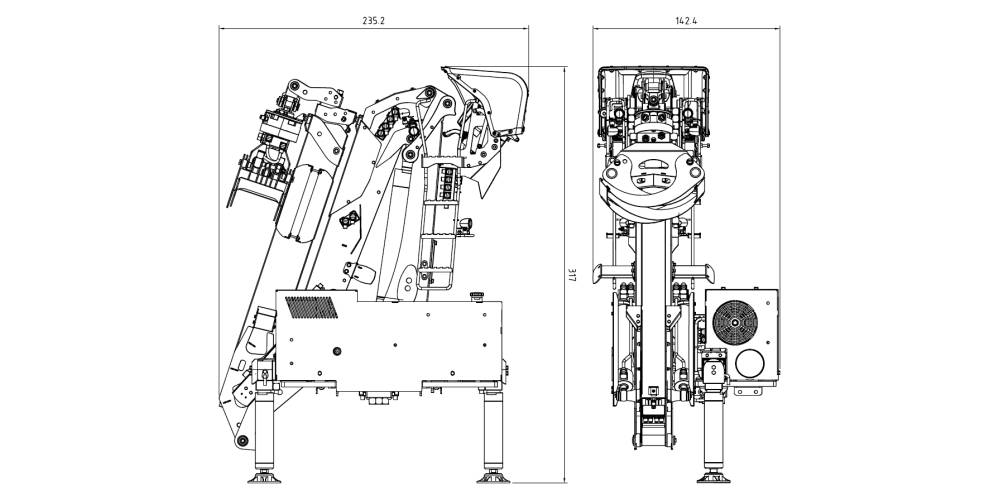

Dimensions :

Do not connect spotlights without resistors!

- For 7.2V operation, add 200 Ohm resistors.
- For 12V operation, add 470 Ohm resistors.
